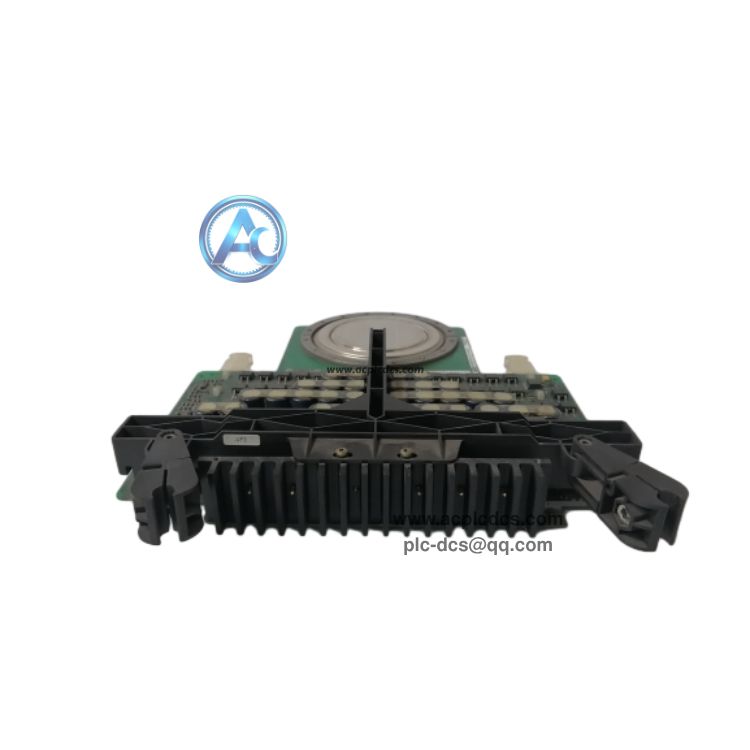

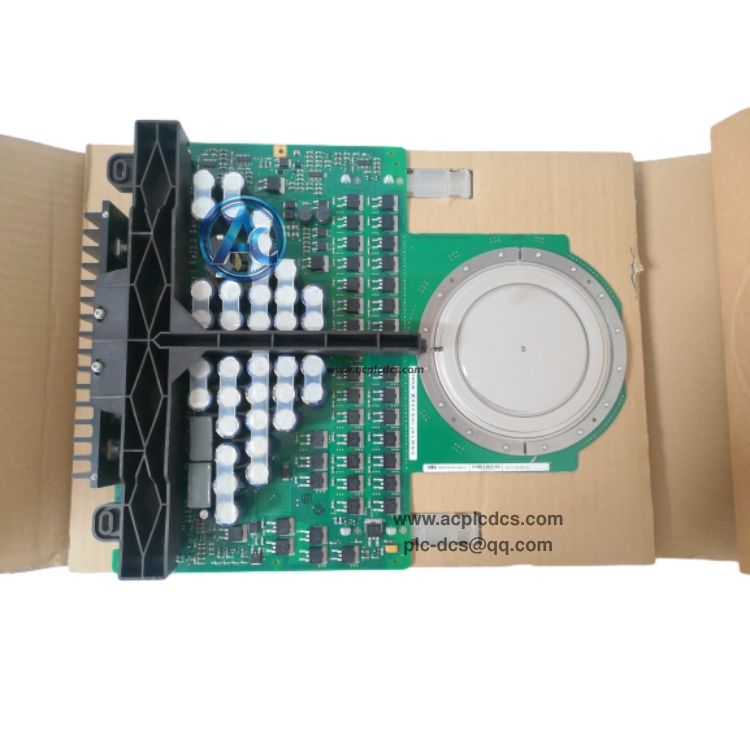

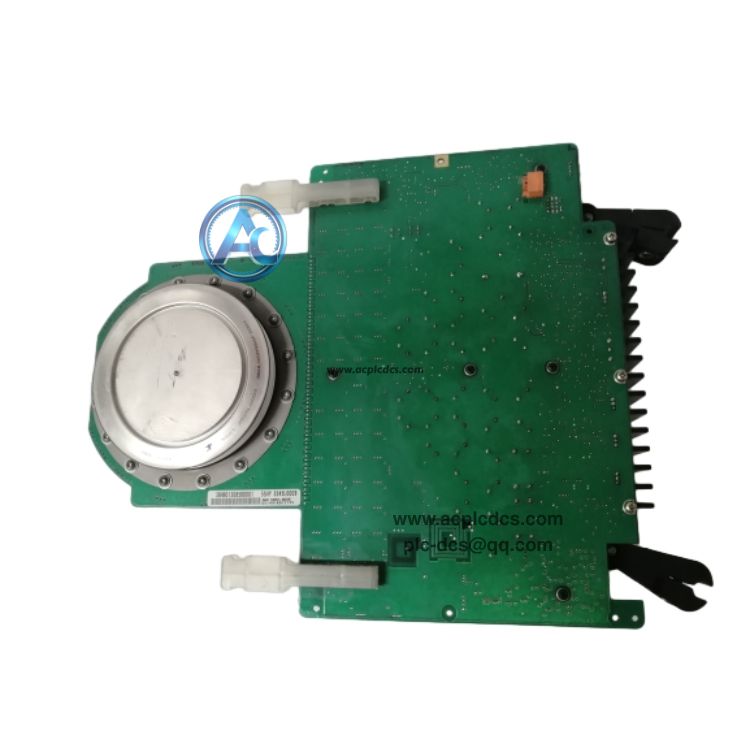

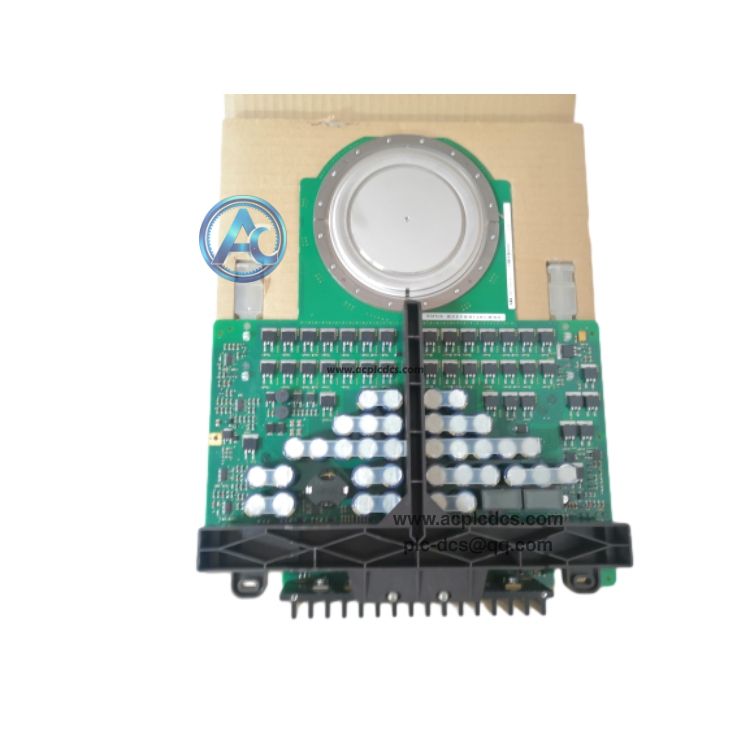

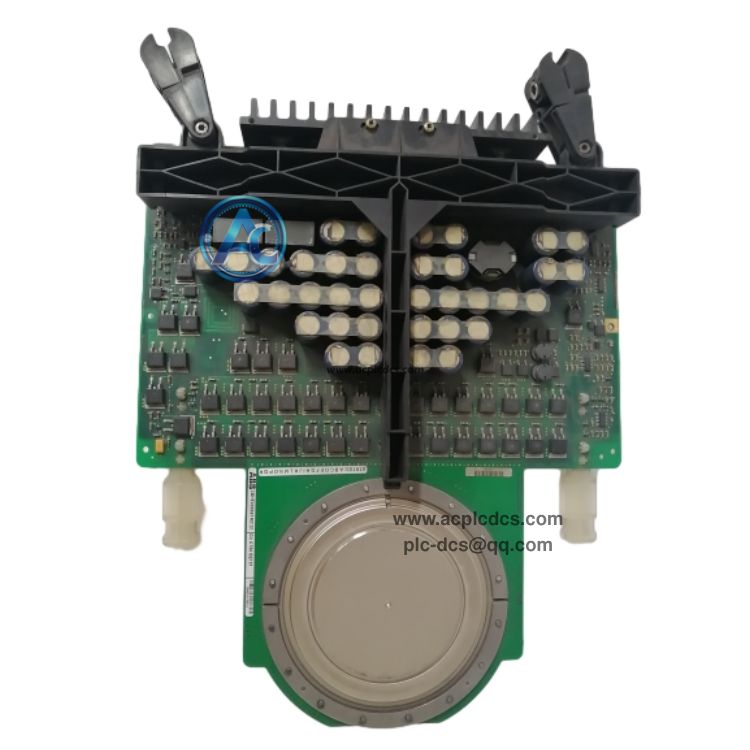

ABB 5SHY3545L0009 3BHB013085R0001 IGCT Power Module in stock
ABB 5SHY3545L0009 (3BHB013085R0001) is a high-power water-cooled IGCT integrated gate-commutated thyristor module manufactured in Switzerland. It integrates IGCT chip, freewheeling diode and gate drive circuit for medium voltage power conversion applications..
This press-pack power module has high voltage and high current handling capacity with reliable short-circuit protection. It is widely deployed in ABB medium voltage variable frequency drives and generator excitation systems, serving as critical spare parts for power unit maintenance and overhaul.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | ABB |
| 2 | Model | 5SHY3545L0009, Order No:3BHB013085R0001 |
| 3 | Module Type | IGCT Integrated Gate Commutated Thyristor Module |
| 4 | Rated Voltage | 4500V |
| 5 | Rated Current | 3000A |
| 6 | Cooling Method | Water cooling, press-pack clamping structure |
| 7 | Origin & Weight | Switzerland, gross weight approx 3.74kg |
| 8 | Application Platform | ACS5000 / ACS6000 MV drive, UNITROL excitation system |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Core power switching component for medium voltage power unit, realizes AC-DC and DC-AC power conversion |
| 2 | Integrated gate driver receives optical trigger signals to control turn-on and turn-off of IGCT chip |
| 3 | Built-in freewheeling diode absorbs inductive current and protects power circuit during switching operations |
| 4 | Excellent short-circuit withstand capability, quickly cut off fault current to protect power electronic system |
| 5 | Low switching loss for continuous heavy-duty operation under water-cooled high power density environment |
Application Scenarios
| No. | Application |
|---|---|
| 1 | ABB ACS5000, ACS6000 medium voltage water-cooled variable frequency drive power unit |
| 2 | Power plant UNITROL generator excitation cabinet power conversion unit |
| 3 | Mining, metallurgy large medium voltage motor speed regulation system |
| 4 | Cement, oil & gas high-power fan and pump medium voltage drive equipment |
| 5 | Medium voltage power conversion equipment spare parts replacement and on-site overhaul |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:Where is ABB 5SHY3545L0009 manufactured? A:It is made in Switzerland, customs tariff code 85413000. |
| 2 | Q:What is the structure of this IGCT? A:It adopts press-pack clamped structure, water cooling design, no soldering required for installation. |
| 3 | Q:Is this module for new projects? A:It belongs to legacy series, mainly used for spare replacement of existing medium voltage drive and excitation systems, not recommended for new projects. |
