ABB 5SHX1960L0006 3BHB016120R0002 IGCT Thyristor Module in stock

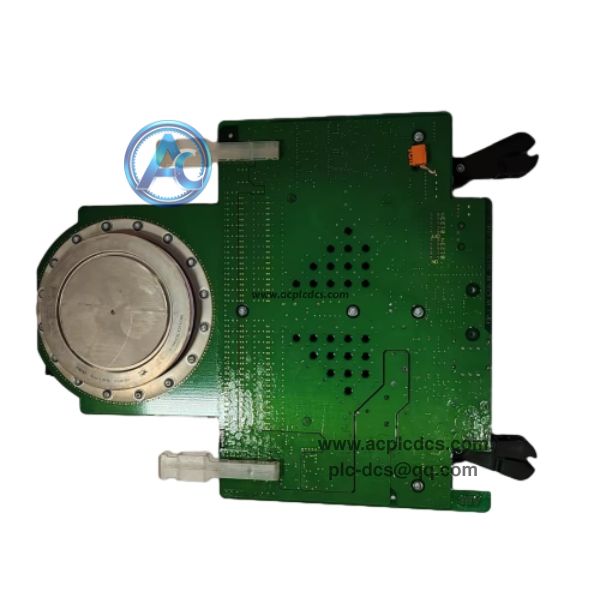

ABB 5SHX1960L0006 3BHB016120R0002 is a high-power integrated gate-commutated thyristor (IGCT) module. It is matched with GVC736BE101 gate drive board, used as the core power switching component in medium and high voltage power conversion systems.

This press-pack IGCT features low on-state loss and fast turn-off capability. It adopts optical fiber trigger control, widely used in SVG, SVC and medium voltage frequency converter cabinet maintenance and spare replacement.

Data Parameters

• 1. Brand: ABB.

• 2. Model: 5SHX1960L0006, Part No:3BHB016120R0002.

• 3. Product Type: Press-pack IGCT Power Module.

• 4. Application: High-power converter, SVG, SVC, medium voltage drive.

• 5. Feature: High current rating, fast commutation, low conduction loss.

• 6. Characteristic: Press packaging design, suitable for water cooling radiator.

• 7. Communication: Controlled by matching GVC736BE101 gate drive board.

• 8. Package: Single IGCT power module, without drive board and radiator.

• 9. Mounting: Compression installation on dedicated water-cooled heat sink.

• 10. Operating Temperature: -10℃ ~ +70℃.

Core Functions

• 1. Serve as high-power electronic switch to realize DC-AC and AC-DC power conversion.

• 2. Accept optical fiber trigger signal from gate board to complete turn-on and turn-off action.

• 3. Bear large rated current for reactive power compensation and variable frequency speed regulation.

• 4. Cooperate with protection circuit to quickly cut off current under fault conditions.

• 5. Stable long-term operation in high voltage, high power industrial power electronic equipment.

Application Scenarios

• 1. Power grid static var generator SVG and static var compensator SVC power cabinet.

• 2. Metallurgical rolling mill medium voltage high-power frequency conversion drive system.

• 3. Wind energy and hydropower high-power grid-connected converter equipment.

• 4. Railway traction power supply and large industrial high-voltage rectifier unit.

• 5. Power electronic system IGCT power module spare inventory backup.

FAQ

• 1. Q: What is ABB 5SHX1960L0006 3BHB016120R0002?
      A: It is a press-pack high-power IGCT power module for high-voltage converter.

• 2. Q: Which drive board does it match?
      A: It must be used together with GVC736BE101 gate drive control board.

• 3. Q: What cooling method is required?
      A: It needs matched water-cooled radiator and standardized compression installation.
