ABB 3BHE019719R0101 GVC736BE101 IGCT Gate Drive Control Board in stock

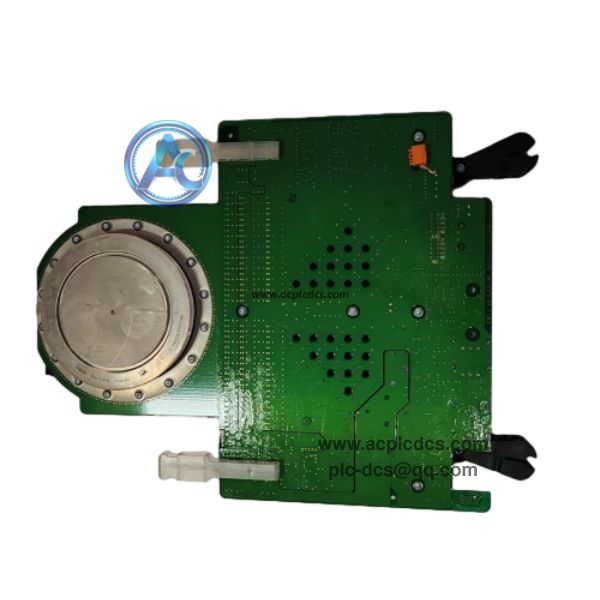

ABB 3BHE019719R0101 GVC736BE101 is an IGCT gate drive control board for ABB high-power power electronic systems. It sends precise gate trigger signals and real-time feedback of device status for IGCT power components.

This board integrates fault detection, overcurrent protection and optical fiber communication interface. It is widely used in high-voltage converters, static var compensators and medium voltage drive equipment as critical spare part.

Data Parameters

• 1. Brand: ABB.

• 2. Model: GVC736BE101, Part No:3BHE019719R0101.

• 3. Product Type: IGCT Gate Drive Control Board.

• 4. Application: High power converter, SVC, medium voltage drive system.

• 5. Feature: Fiber optic signal transmission, high-speed gate triggering.

• 6. Characteristic: Built-in device monitoring and rapid fault protection.

• 7. Communication: Optical fiber interface for control unit data interaction.

• 8. Package: Complete drive control board with terminals and connectors.

• 9. Mounting: Installed inside high-power power converter cabinet.

• 10. Operating Temperature: -10℃ ~ +70℃.

Core Functions

• 1. Generate accurate drive pulse signals to control the turn-on and turn-off of IGCT.

• 2. Collect working status and temperature signal of IGCT power unit in real time.

• 3. Trigger fast protection action when overcurrent, overvoltage or abnormal device state occurs.

• 4. Exchange control instructions and fault information with main controller via optical fiber.

• 5. Suppress high-voltage interference and ensure stable operation of power electronic equipment.

Application Scenarios

• 1. Power grid high-voltage static var compensator (SVC) and SVG converter cabinet.

• 2. Metallurgical rolling mill medium voltage high-power variable frequency drive equipment.

• 3. Wind power and hydropower high-power converter control cabinet maintenance.

• 4. Railway traction power supply and large industrial high-voltage rectifier unit.

• 5. Power electronics system IGCT drive board spare inventory backup.

FAQ

• 1. Q: What is ABB 3BHE019719R0101 GVC736BE101?
      A: It is a dedicated gate drive control board for ABB IGCT power semiconductor devices.

• 2. Q: What communication method does it adopt?
      A: It uses optical fiber communication to isolate high voltage and avoid electromagnetic interference.

• 3. Q: Can it be mixed with other series drive boards?
      A: No, it must match the corresponding IGCT and master control system.
