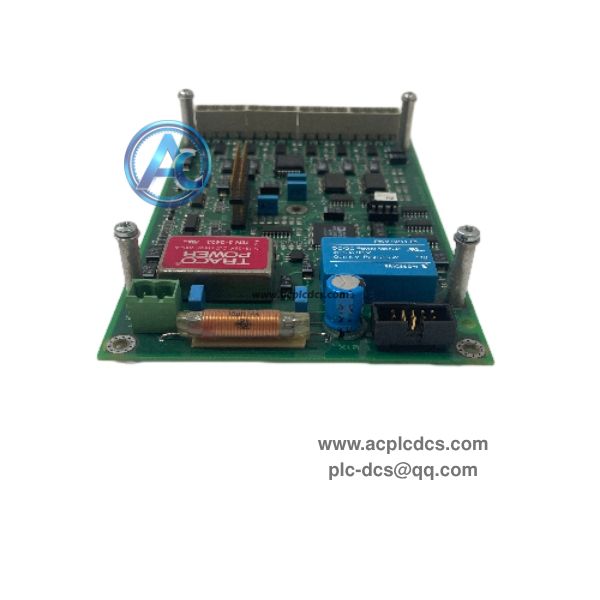

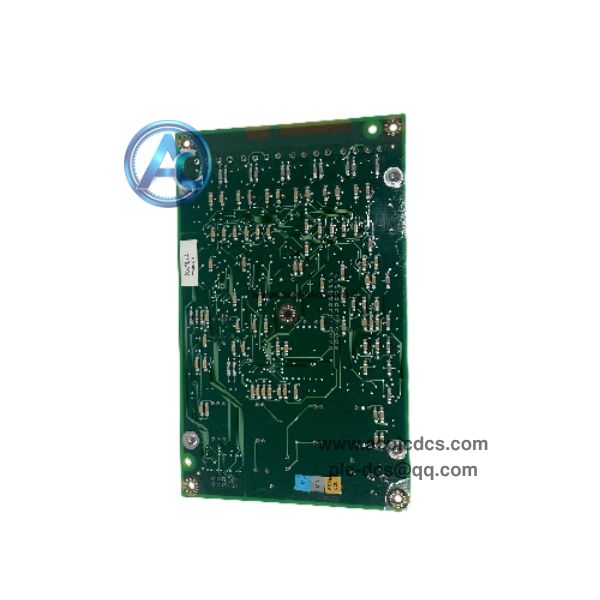

ABB 3ASC25H214 DATX130 Rotor Feedback Board in stock

ABB 3ASC25H214 DATX130 is a rotor feedback signal processing board for ABB ASTAT medium voltage drive system. It collects rotor position and speed feedback signals, performs signal conditioning and conversion for closed-loop vector control of medium voltage motors.

This board supports resolver and pulse encoder signal input, equipped with onboard signal isolation circuit and fault diagnosis LEDs. It adopts plug-in rack design and conformal coating protection, widely used for medium voltage drive cabinet maintenance, spare parts replacement and industrial drive retrofit projects.

Data Parameters

• 1. Brand: ABB.

• 2. Model: 3ASC25H214 DATX130.

• 3. Product Type: Rotor Feedback Signal Processing Board.

• 4. Applicable System: ABB ASTAT medium voltage variable frequency drive.

• 5. Supported Feedback: Resolver and incremental pulse encoder signals.

• 6. Signal Processing: Signal isolation, filtering and analog-digital conversion.

• 7. Indicators: Onboard LED lights for running status and fault alarm display.

• 8. Power Supply: Low voltage DC power supplied by the drive control rack.

• 9. Operating Temperature: -20℃ ~ +70℃.

• 10. Protection: Conformal coating for dust and moisture resistance.

Core Functions

• 1. Collect resolver and encoder rotor position and speed feedback signals from medium voltage motor.

• 2. Condition raw feedback signals, eliminate noise interference and transmit accurate data to main control board.

• 3. Support high-precision closed-loop vector control for ASTAT medium voltage drive system.

• 4. Real-time self-diagnosis of signal channel faults and report alarms via LED indicators.

• 5. Communicate with main drive control unit through backplane bus to synchronize motor feedback data.

Application Scenarios

• 1. Metallurgy plant ABB ASTAT medium voltage drive cabinet DATX130 feedback board replacement and maintenance.

• 2. Mining large medium voltage motor variable speed control system hardware retrofit project.

• 3. Cement, chemical industry high power medium voltage drive spare parts renewal.

• 4. Water pump and fan medium voltage variable frequency control cabinet spare parts inventory backup.

• 5. Legacy ABB ASTAT drive overhaul and aging rotor feedback board replacement project.

FAQ

• 1. Q: What is ABB 3ASC25H214 DATX130?
      A: It is rotor feedback processing board for ABB ASTAT medium voltage drive, used to collect motor rotor speed and position signals.

• 2. Q: What feedback sensors can DATX130 support?
      A: It supports resolver and incremental pulse encoder for rotor position and speed detection.

• 3. Q: What is the main application of this board?
      A: It provides feedback signals to realize high-performance vector control for ABB ASTAT medium voltage frequency converter.
