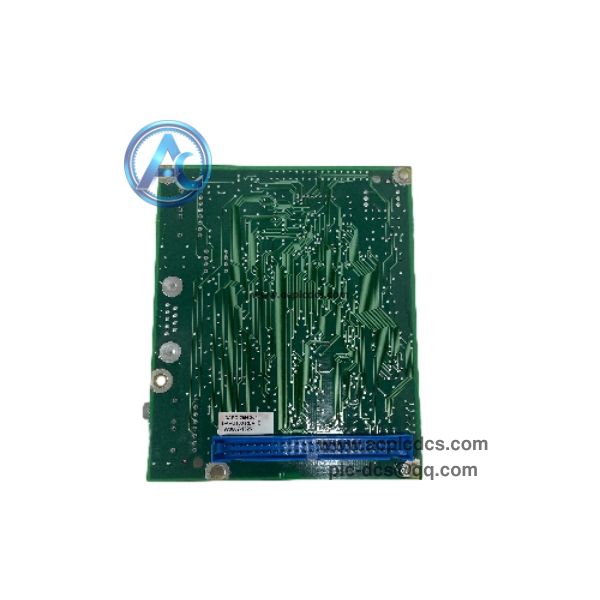

ABB 3ASC25H204 DAPU100 Drive Signal Processing Unit in stock

ABB 3ASC25H204 DAPU100 is a high-performance drive signal processing unit designed for ABB ACS800 series medium and low voltage frequency converters. It is responsible for encoder feedback signal acquisition, closed-loop motion control calculation and digital signal processing for variable frequency drive systems.

This board supports high-resolution encoder input, integrates digital I/O channels and 37-pin D-sub external connector. It obtains 5VDC and 24VDC power supply from the inverter, adopts plug-in installation, widely used for ACS800 drive cabinet maintenance, spare parts replacement and industrial drive system retrofit projects.

Data Parameters

• 1. Brand: ABB.

• 2. Model: 3ASC25H204 DAPU100.

• 3. Product Type: Drive Signal Processing Unit / Encoder Interface Board.

• 4. Applicable Series: ABB ACS800 variable frequency drive series.

• 5. Encoder Support: Up to 1024 ppr pulse encoder signal input.

• 6. External Interface: 37-pin D-sub connector for signal wiring.

• 7. Power Supply: 5VDC logic power and 24VDC signal power supplied by drive.

• 8. Function: Speed closed-loop control and position feedback processing.

• 9. Operating Temperature: -25℃ ~ +55℃.

• 10. Installation: Plug-in board mounting inside ACS800 inverter cabinet.

Core Functions

• 1. Collect pulse signals from shaft encoder and convert signals for closed-loop speed and position control of motor.

• 2. Process real-time motor speed feedback and assist ACS800 drive to realize high-precision speed regulation.

• 3. Provide multi-channel digital input and output interfaces for drive interlock and status signal transmission.

• 4. Realize signal conditioning and noise filtering to improve stability of encoder feedback signal in industrial environment.

• 5. Work as motion control auxiliary board to expand high dynamic position synchronization control function for ACS800 drive.

Application Scenarios

• 1. Metallurgical factory ABB ACS800 inverter cabinet DAPU100 board replacement and maintenance.

• 2. Paper making, textile production line variable frequency drive closed-loop control system retrofit project.

• 3. Port hoisting, material conveyor high-precision synchronous drive hardware renewal.

• 4. Mining and chemical industry large motor variable speed control spare parts inventory backup.

• 5. Legacy ACS800 series drive overhaul and aging encoder signal processing board replacement project.

FAQ

• 1. Q: What is ABB 3ASC25H204 DAPU100?
      A: It is DAPU100 drive signal processing and encoder interface board, specially matched with ABB ACS800 frequency converter for motor closed-loop motion control.

• 2. Q: What encoder signal can DAPU100 process?
      A: It supports incremental encoder signal up to 1024 pulses per revolution for speed and position feedback.

• 3. Q: Does DAPU100 need external power supply?
      A: No, it gets 5VDC and 24VDC power directly from ACS800 inverter without additional external power source.
