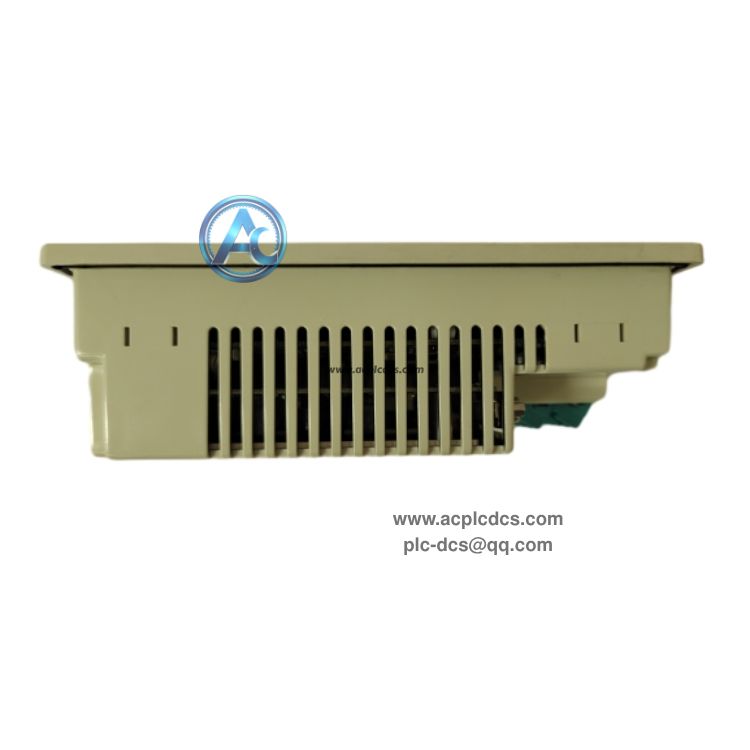

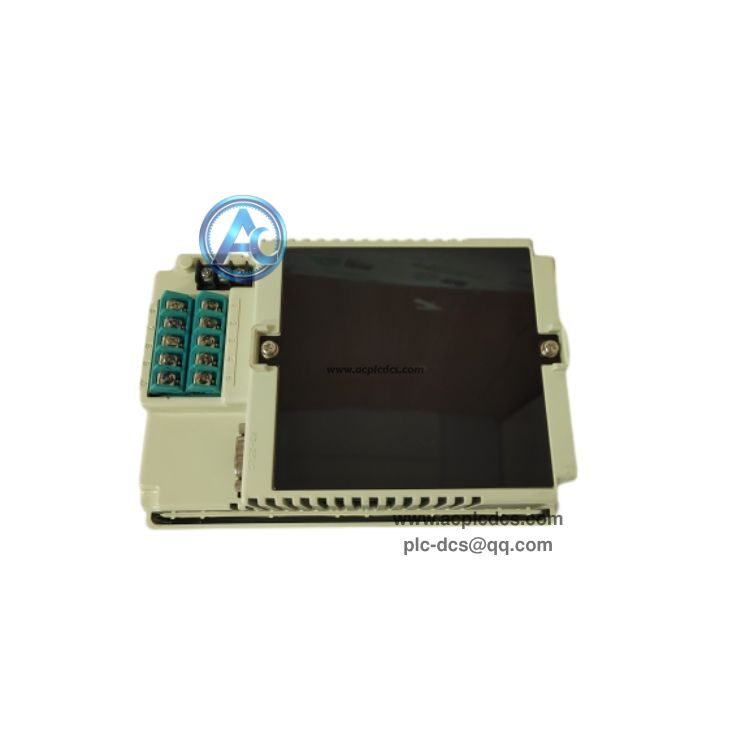

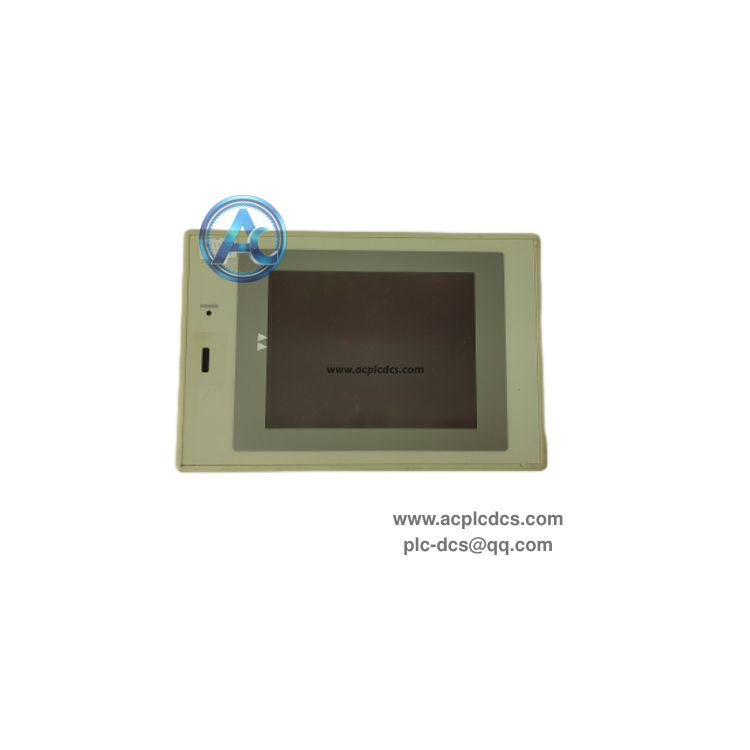

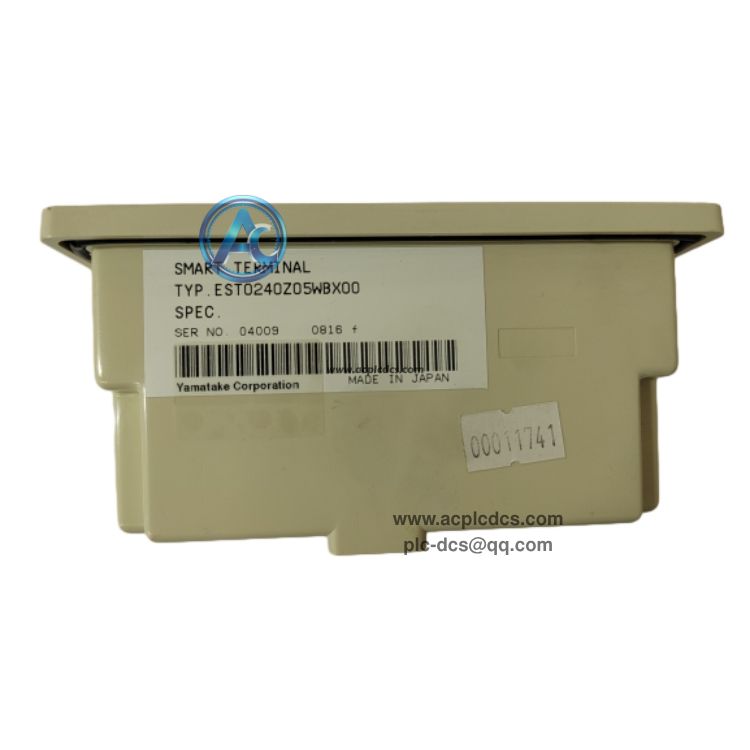

YAMATAKE EST0240Z05WBX00 EST240Z Series HMI Touch Screen in stock

YAMATAKE EST0240Z05WBX00 belongs to EST240Z smart terminal series HMI panel, also known as Azbil Yamatake operator touch panel. It is designed for industrial process monitoring, parameter setting and equipment status display in factory automation control systems.

This HMI adopts color STN LCD screen with 320×240 resolution, powered by 24V DC. It supports serial communication with PLC and controllers, programmed by AP Editor software, widely used as spare replacement for industrial automation cabinet maintenance and retrofit projects.

Data Parameters

• 1. Brand: YAMATAKE (Azbil).

• 2. Model: EST0240Z05WBX00, Series: EST240Z.

• 3. Product Type: Industrial HMI Smart Terminal Touch Panel.

• 4. Display: Color STN LCD, resolution 320×240 pixels.

• 5. Power Supply: 24V DC industrial power input.

• 6. Onboard Memory: 1M bytes program storage memory.

• 7. Communication: Serial port for connecting PLC and industrial controllers.

• 8. Programming Software: AP Editor configuration software.

• 9. Mounting: Panel cutout mounting for control cabinet installation.

• 10. Operating Environment: Suitable for indoor industrial control cabinet application.

Core Functions

• 1. Real-time display of industrial process data including temperature, pressure, flow and equipment running status.

• 2. Allow operators to set control parameters, send operation commands and view alarm information on site.

• 3. Serial communication to exchange data with various PLC and industrial controllers in automation systems.

• 4. Support customized screen configuration, alarm log recording and data trend display via AP Editor software.

• 5. Rugged industrial touch panel design for stable long-time operation in factory workshop environments.

Application Scenarios

• 1. Factory automation production line control cabinet HMI spare parts replacement and maintenance.

• 2. Petrochemical and pharmaceutical process control system operator panel retrofit and upgrade.

• 3. Water treatment and energy industry local process monitoring terminal renovation project.

• 4. Legacy Yamatake EST240Z automation system spare parts inventory backup.

• 5. Industrial machine and packaging equipment old HMI touch screen renewal project.

FAQ

• 1. Q: What is YAMATAKE EST0240Z05WBX00?
      A: It is EST240Z series smart terminal HMI touch screen manufactured by Yamatake (Azbil) for industrial process operation and monitoring.

• 2. Q: What software is used for screen programming?
      A: AP Editor software is used to design HMI screens, configure tags and download project programs to the panel.

• 3. Q: What kind of signal interface does this HMI use?
      A: It adopts serial communication interface to connect with PLC and industrial controllers for bidirectional data exchange.
