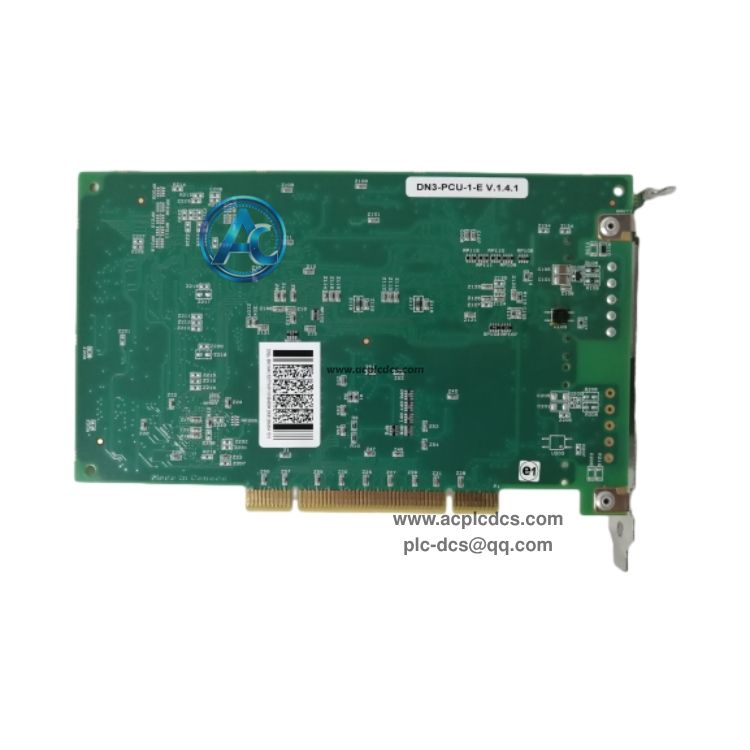

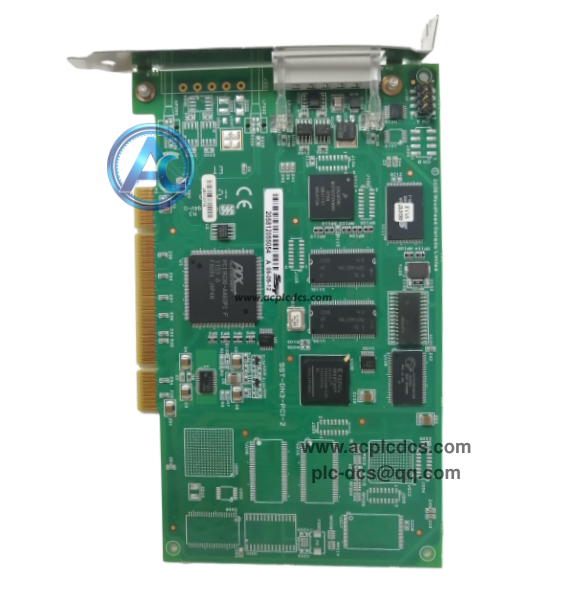

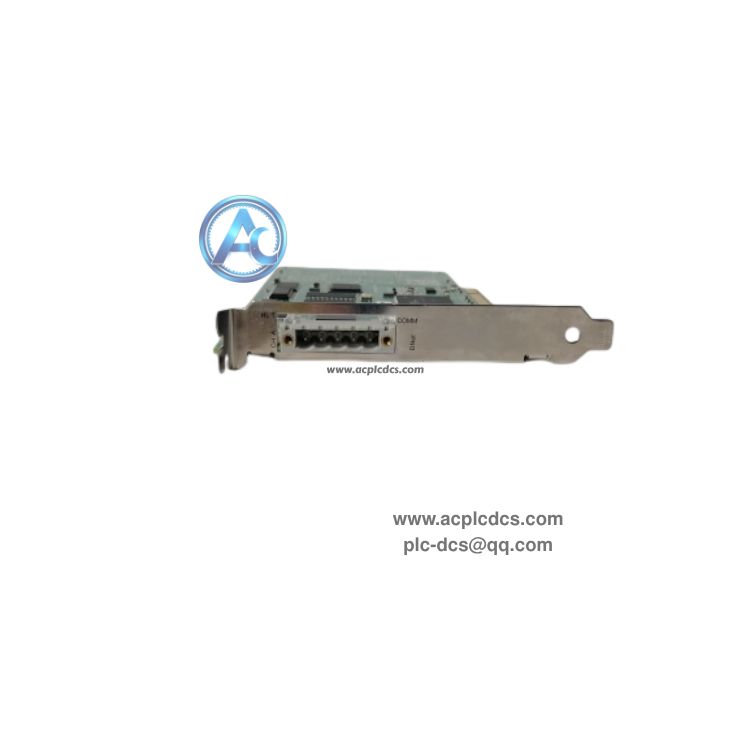

SST-DN3-PCI-2 DSQC658 DeviceNet PCI Communication Card in stock

SST-DN3-PCI-2 (ABB part number DSQC658) is a dual-channel DeviceNet PCI interface card developed by SST (Molex Woodhead). It is widely installed inside ABB IRC5 robot controllers to handle real-time DeviceNet fieldbus communication between robot mainboard and field peripherals.

This card adopts on-board 32-bit RISC co-processor to independently process DeviceNet protocol and reduce host CPU load. It provides galvanic isolation between PCI bus and DeviceNet network to protect the controller from surge and ground loop interference. It is widely used as spare replacement part for ABB IRC5 robot cabinet maintenance and retrofit projects.

Data Parameters

• 1. Brand: SST (Molex Woodhead), ABB designated part DSQC658.

• 2. Model: SST-DN3-PCI-2, ABB PN: DSQC658 / 3HAC027652-001.

• 3. Product Type: Dual Channel DeviceNet PCI Communication Card.

• 4. Bus Standard: Universal PCI 2.2, compatible with 3.3V and 5V PCI slots.

• 5. Onboard Processor: 32-bit RISC co-processor for protocol processing.

• 6. Communication Protocol: DeviceNet, supports Master/Scanner and Slave/Adapter mode.

• 7. Baud Rate: 125 kbps, 250 kbps, 500 kbps with auto baud detection.

• 8. Isolation: Galvanic isolation between PCI side and DeviceNet field side.

• 9. Memory: 512KB shared RAM for each independent channel.

• 10. Operating Temperature: 0℃ ~ +60℃.

Core Functions

• 1. Real-time bidirectional data exchange between ABB IRC5 robot controller and DeviceNet I/O, sensors and servo drives.

• 2. Two independent DeviceNet channels, which can run separate DeviceNet networks at the same time.

• 3. On-board co-processor undertakes all DeviceNet protocol processing to avoid occupying robot host computing resources.

• 4. Built-in communication diagnosis function to detect bus short circuit, node offline and cable fault alarm.

• 5. Electrical isolation design suppresses industrial electromagnetic interference and improves robot system stability.

Application Scenarios

• 1. ABB IRC5 robot control cabinet DeviceNet communication card spare replacement project.

• 2. Automobile welding and assembly production line robot peripheral I/O network maintenance.

• 3. Packaging and material handling robotic system fieldbus network upgrade and transformation.

• 4. Factory automation DeviceNet network expansion and industrial PC based control system deployment.

• 5. Legacy ABB robot controller overhaul, spare parts inventory and fault troubleshooting.

FAQ

• 1. Q: What is SST-DN3-PCI-2 DSQC658?
      A: It is SST dual-channel DeviceNet PCI communication card, named DSQC658 by ABB, specially used for IRC5 robot controller fieldbus communication.

• 2. Q: What robot controller does DSQC658 match?
      A: It is designed for ABB IRC5 robot cabinet, to connect DeviceNet remote I/O and actuators.

• 3. Q: What is the advantage of dual channel design?
      A: Two independent channels support two separate DeviceNet networks, which can isolate different device groups and improve system reliability.
