Sigmatek DNC 115 Positioning Module in stock

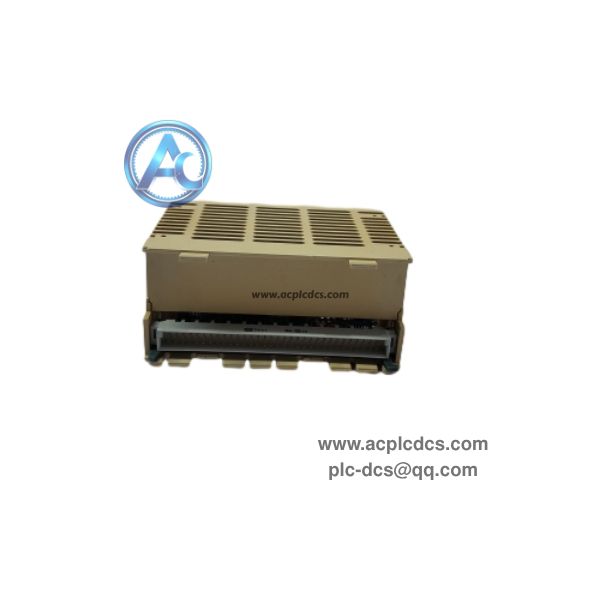

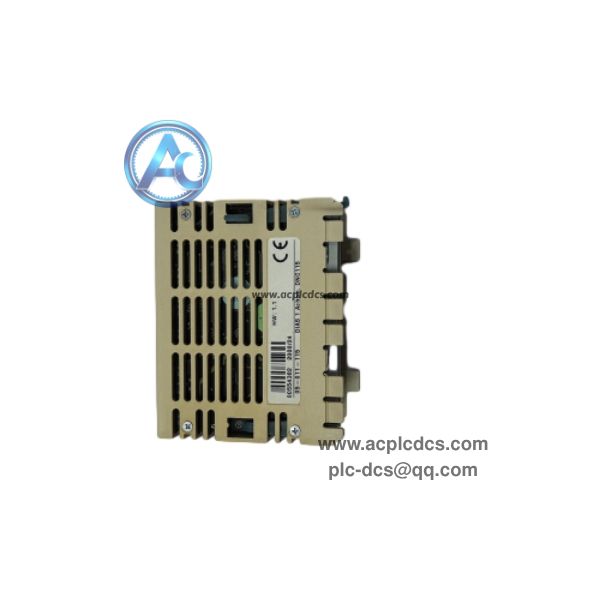

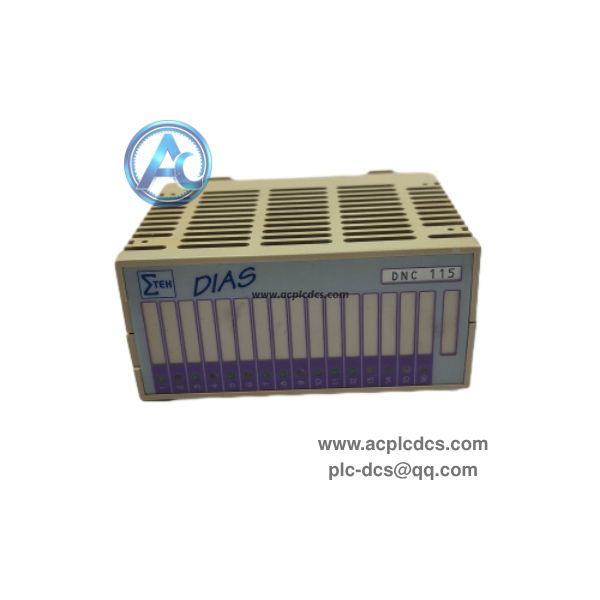

Sigmatek DNC 115 is a single-axis positioning module for Sigmatek DIAS automation system. It accepts RS422 incremental encoder signals and performs high-speed position counting, with analog setpoint output and optocoupler switching outputs for simple axis positioning control.

This module has 3 interrupt digital inputs for limit switches and reference signal, plus 2 isolated opto outputs for direction and release control. It adopts 16-bit counter and 12-bit D/A conversion, widely used for positioning, conveyor and small servo motion control.

Data Parameters

• 1. Brand: Sigmatek.

• 2. Model: DNC 115.

• 3. Product Type: Single Axis Positioning Module.

• 4. Application: Sigmatek DIAS PLC / Motion Control System.

• 5. Feature: RS422 encoder input, 16-bit counter, 12-bit DA setpoint output.

• 6. Characteristic: 3 interrupt inputs, 2 isolated optocoupler outputs.

• 7. Communication: DIAS bus backplane interface.

• 8. Max Encoder Frequency: 125 kHz, quadruple counting up to 500 kHz.

• 9. Mounting: DIN rail DIAS rack slot installation.

• 10. Operating Temperature: 0℃ ~ +60℃.

Core Functions

• 1. Receive A/B/R incremental encoder signals to track actual axis position.

• 2. Output analog set value via 12-bit D/A converter for speed reference.

• 3. Detect home signal, positive and negative limit signals through interrupt inputs.

• 4. Use two opto outputs for motor direction enable and release control signal.

• 5. Upload position value and status to Sigmatek CPU via DIAS bus.

Application Scenarios

• 1. Packaging machinery, cutting equipment single-axis positioning control.

• 2. Conveyor, lifting mechanism and material handling motion system.

• 3. Woodworking, textile and printing automation positioning rack.

• 4. Sigmatek DIAS system retrofitting, maintenance and spare replacement.

• 5. Small motion axis positioning control spare parts inventory backup.

FAQ

• 1. Q: What is Sigmatek DNC 115?
      A: It is a single axis positioning module for Sigmatek DIAS automation platform.

• 2. Q: What encoder signal does it support?
      A: RS422 differential incremental encoder (A, /A, B, /B, R, /R).

• 3. Q: Can it control servo directly?
      A: It outputs analog setpoint + direction/enable signals to drive servo or amplifier.
