GE VMIVME-5565-010000 332-015565-010000P VMEbus Memory Module in stock

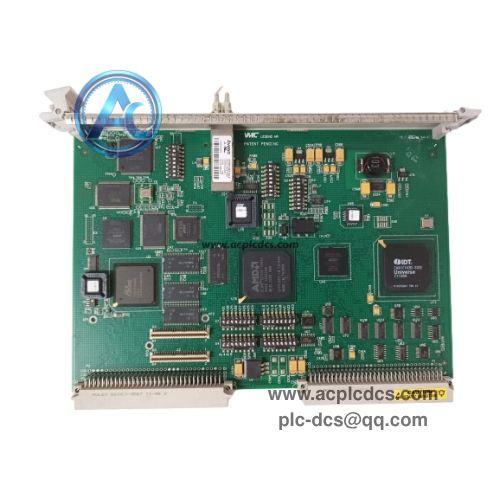

GE VMIVME-5565-010000 (332-015565-010000P) is a high-speed fiber reflective memory node card for VMEbus systems. It is a 6U Eurocard board designed for deterministic real-time data sharing across distributed nodes, widely used for synchronous control and simulation systems.
This reflective memory card broadcasts local memory data to all network nodes over fiber optics with ultra-low latency, no heavy CPU overhead required. It is discontinued legacy spare hardware, used for repair and replacement of old VME-based real-time control and simulation platforms.
Main Specifications
| Item | Parameter |
| [1] Brand | GE |
| [2] Model | VMIVME-5565-010000, 332-015565-010000P |
| [3] Product Type | VMEbus Fiber Reflective Memory Module |
| [4] Form Factor | 6U Eurocard VME board |
| [5] Onboard Memory | 128MB SDRAM with parity |
| [6] Data Transfer Rate | 43MB/s ~ 174MB/s non-redundant mode |
| [7] Fiber Distance | Multimode:300m; Single-mode:10km |
| [8] Max Nodes | Up to 256 network nodes |
| [9] Power Supply | +5VDC |
| [10] Operating Temp | 0℃ ~ +65℃ (forced air cooling) |
Core Functions
| Function | Description |
| [1] Reflective Memory Real-time Synchronization | Automatically broadcast written memory data to all nodes in fiber network with microsecond-level low latency. |
| [2] VMEbus Interface & DMA Transfer | Support VME64x bus and DMA data transmission for fast interaction with VME SBC. |
| [3] Fiber Optical Communication | Fiber transmission improves anti-interference capability for long-distance distributed control. |
| [4] Network Interrupt Support | Provide 4 network interrupt channels to trigger synchronous events across distributed nodes. |
| [5] Redundant Network Option | Can be configured to redundant transmission mode to enhance system reliability. |
Application Scenarios
| Industry | Usage |
| [1] Real-time Simulation System | Hardware-in-the-loop simulation and training simulator synchronous data sharing. |
| [2] Industrial Process Control | Distributed power plant control and multi-node synchronous automation systems. |
| [3] Aerospace & Test Equipment | High-speed data acquisition and automated test VME rack systems. |
| [4] Legacy VME System Maintenance | Spare replacement for aging GE VMIVME reflective memory network nodes. |
FAQ
| Question | Answer |
| [1] What is GE VMIVME-5565-010000? | It is a 6U VME fiber reflective memory node card for low-latency real-time data synchronization across distributed nodes. |
| [2] What is the core advantage of reflective memory? | Data auto-sync to all nodes without complex network protocol, achieving deterministic microsecond delay. |
| [3] Which compatible series can it connect with? | Works with VMIMPC-5565, VMIPCI-5565 reflective memory cards in the same network. |
| [4] Is it obsolete spare part? | Yes, it is legacy spare for maintenance and replacement of old VMEbus real-time control systems. |
