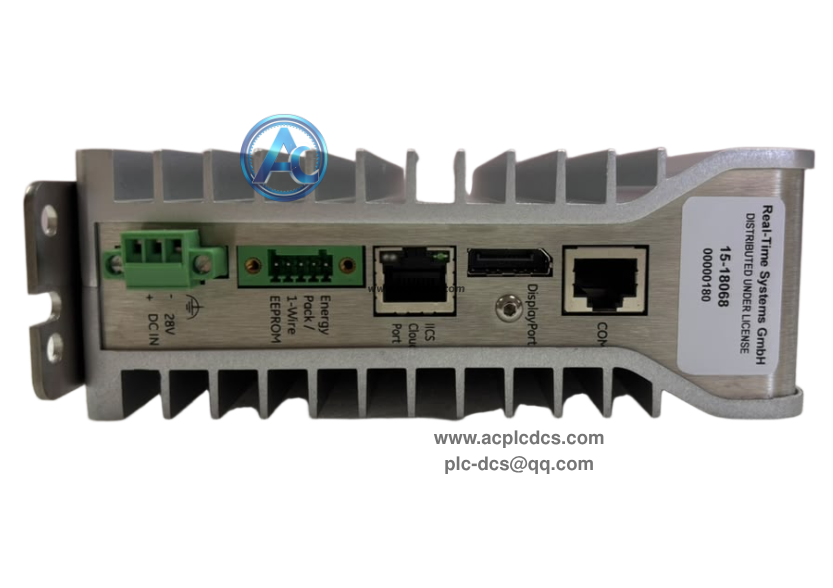

GE IS420UCSCH2A-C-VO.1-A Standalone Controller Module in stock

GE IS420UCSCH2A-C-VO.1-A is a UCSC universal standalone controller for GE Speedtronic Mark VIe / Mark VIeS turbine control system. It adopts dual-core processor with QNX real-time operating system, responsible for deterministic execution of turbine control, protection and BoP logic, and communicates with distributed I/O packs via high-speed IONet network.

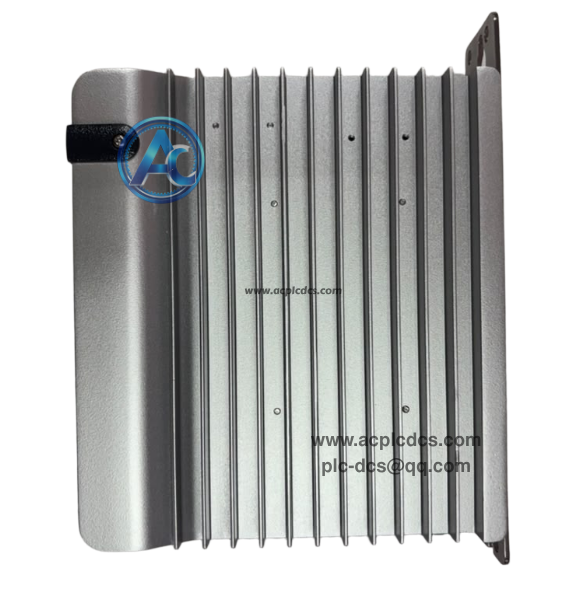

This version C-VO.1-A is a special configured firmware variant, supporting IEEE1588 precise time synchronization, redundant Ethernet communication and hot diagnostics. It is fanless passive cooling design, widely used for gas turbine, steam turbine and generator control, and is the core spare part for power plant Mark VIe control cabinet upgrade and maintenance.

Data Parameters

• 1. Brand: GE (General Electric, GE Vernova)

• 2. Model: IS420UCSCH2A-C-VO.1-A

• 3. Product Type: UCSC Standalone Turbine Controller

• 4. Application: Mark VIe / Mark VIeS gas, steam turbine and generator control

• 5. Feature: Dual-core CPU, QNX RTOS, IONet, IEEE1588, fanless cooling

• 6. Characteristic: Firmware version VO.1-A, redundant Ethernet, battery-less design

• 7. Power Supply: 18~30VDC, typical 24VDC

• 8. Matching I/O: All Mark VIe I/O packs and terminal boards via IONet

• 9. Mounting: DIN rail or rack panel mounting

• 10. Operating Temperature: -20℃ ~ +70℃

Core Functions

• 1. Run real-time control algorithm, turbine speed regulation, fuel control and protection interlock logic.

• 2. Exchange data and status with distributed I/O packs through redundant IONet industrial Ethernet.

• 3. Implement IEEE1588 clock synchronization to ensure time consistency across the whole control system.

• 4. Complete self-diagnosis, fault logging and data upload to ToolboxST engineering software.

• 5. Support simplex, dual and TMR triple redundant architecture for critical power generation units.

Application Scenarios

• 1. Combined cycle power plant gas turbine main control cabinet.

• 2. Steam turbine governor, overspeed protection and generator excitation control rack.

• 3. GE Mark VIe system overhaul, controller replacement and firmware upgrade.

• 4. Compressor, BMS burner management and auxiliary BoP control system.

• 5. High-reliability power plant control requiring TMR fault tolerant architecture.

FAQ

• 1. Q: What is GE IS420UCSCH2A-C-VO.1-A?
      A: It is a configured firmware variant of UCSC standalone controller for Mark VIe turbine control system.

• 2. Q: What does suffix C-VO.1-A mean?
      A: C means configuration, VO.1-A is the specific firmware version loaded on this controller.

• 3. Q: Does it need cooling fan?
      A: No, it adopts passive heat sink, fanless design for high reliability.
