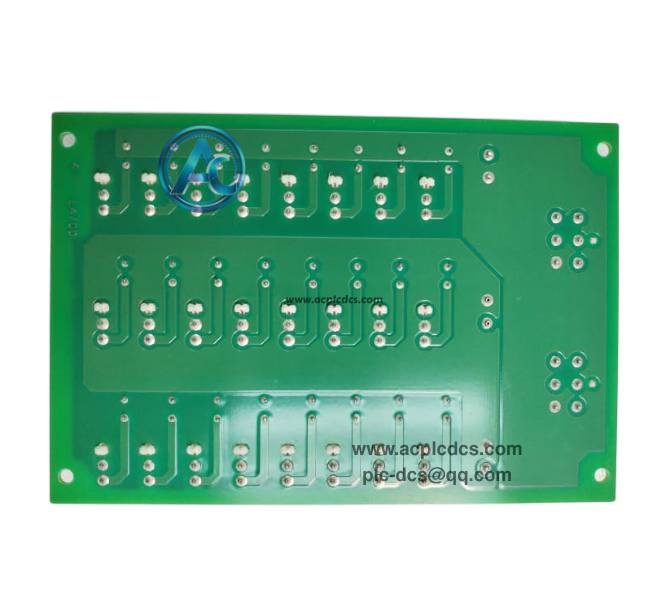

GE IS400JPDHH1ACE Power Distribution Board in stock

GE IS400JPDHH1ACE is a high-density JPDH power distribution board for GE Speedtronic Mark VIe turbine control system. It distributes regulated 28VDC power supply to multiple I/O packs, communication boards and network switches inside the control rack, serving as the central power distribution hub for the whole cabinet.

This board integrates independent PTC overcurrent protection for each output channel, with built-in voltage monitoring and fault reporting function. It supports daisy-chain expansion to supply more I/O modules, widely used in gas turbine, steam turbine and generator excitation control cabinets, and is a common spare part for power plant Mark VIe system maintenance.

Data Parameters

• 1. Brand: GE (General Electric, Speedtronic)

• 2. Model: IS400JPDHH1ACE

• 3. Product Type: High Density Power Distribution Board (JPDH)

• 4. Application: Mark VIe gas / steam turbine and generator control cabinet

• 5. Feature: 28VDC power distribution, PTC channel protection, voltage monitoring, fault diagnosis

• 6. Characteristic: Daisy-chain expandable, multiple output ports, rack plug-in design

• 7. Rated Input: 28VDC regulated DC power

• 8. Load Support: I/O packs, processor boards, Ethernet switches

• 9. Mounting: Plug-in installation inside Mark VIe I/O rack

• 10. Operating Temperature: -20℃ ~ +70℃

Core Functions

• 1. Receive main 28VDC power and distribute power to each downstream I/O device.

• 2. Provide independent PTC overcurrent protection to avoid fault spreading across channels.

• 3. Monitor bus voltage and output status, upload fault alarms to the controller.

• 4. Support cascaded connection to expand power supply capacity for large I/O racks.

• 5. Supply stable DC power for turbine regulation, protection and communication modules.

Application Scenarios

• 1. Combined cycle power plant gas turbine Mark VIe control cabinet.

• 2. Steam turbine governor and generator EX2100 excitation rack.

• 3. GE Mark VIe turbine control system overhaul and spare replacement.

• 4. Large I/O rack power distribution and power supply protection unit.

• 5. Redundant power architecture for critical power generation safety control loops.

FAQ

• 1. Q: What is GE IS400JPDHH1ACE?
      A: It is a high-density 28VDC power distribution board for Mark VIe control rack, used to feed I/O packs and network devices.

• 2. Q: What is the difference between JPDH and JPDG?
      A: JPDH is upgraded high-density version with more output channels and improved protection circuit compared to JPDG.

• 3. Q: Can it be used without redundant power supply?
      A: It can work with single power input, but critical turbine systems usually adopt redundant 28VDC source.
