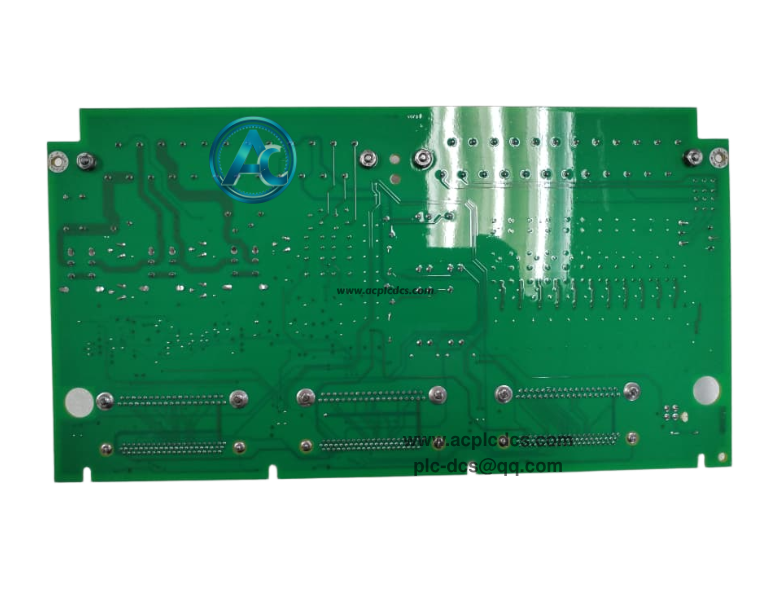

GE IS200TTURH1CFD Turbine Terminal Board in stock

GE IS200TTURH1CFD is a conformal coated turbine primary trip terminal board for GE Speedtronic Mark VIe turbine control system. It serves as the main relay termination interface between PTUR I/O processor pack and field protection devices, collecting overspeed, flame detection and emergency stop discrete signals, and executing voted primary trip commands through onboard safety relays.

This board adopts TMR triple modular redundant compatible design, equipped with barrier terminal blocks and surge suppression circuit. The conformal coating protects PCB against moisture and corrosive gas, widely used for gas turbine and steam turbine main fuel trip, generator breaker protection loops, and is a critical spare part for power plant Mark VIe protection cabinets.

Data Parameters

• 1. Brand: GE (General Electric, Speedtronic)

• 2. Model: IS200TTURH1CFD

• 3. Product Type: Turbine Primary Trip Terminal Board (TTUR)

• 4. Application: Mark VIe gas & steam turbine primary safety trip system

• 5. Feature: Conformal coating, TMR compatible, safety relay output, surge protection

• 6. Characteristic: Barrier terminal block, multiple D-sub connectors, relay status monitoring

• 7. Rated Trip Voltage: 125VDC for relay and solenoid circuits

• 8. Matching I/O Pack: PTUR turbine protection processor pack

• 9. Mounting: Plug-in installation inside Mark VIe protection rack

• 10. Operating Temperature: -30℃ ~ +65℃

Core Functions

• 1. Receive turbine protection signals from overspeed, flame loss and emergency stop switches.

• 2. Cooperate with PTUR pack to complete 2oo3 voting logic for primary turbine trip.

• 3. Drive fuel trip solenoid valves and generator breaker trip circuits via safety relays.

• 4. Isolate field high-energy trip circuit and control side signals to reduce interference risk.

• 5. Diagnose relay contact state and wiring faults for safety protection loop.

Application Scenarios

• 1. Combined cycle power plant gas turbine main fuel trip protection cabinet.

• 2. Steam turbine overspeed protection and generator emergency shutdown rack.

• 3. GE Mark VIe turbine safety control system overhaul and spare replacement.

• 4. Burner management BMS and main protection interlock termination unit.

• 5. Coastal and humid power plant control cabinet with anti-corrosion coated PCB.

FAQ

• 1. Q: What is GE IS200TTURH1CFD?
      A: It is a conformal coated primary trip terminal board matched with PTUR pack for Mark VIe turbine safety system.

• 2. Q: What is the difference between TTUR and TRPG?
      A: TTUR is the main primary trip termination board, TRPG is auxiliary relay trip return board for overspeed loop.

• 3. Q: Can it work with Mark VI non-VIe racks?
      A: No, it is specially designed for Mark VIe platform and incompatible with older Mark VI.
