GE IS200JPDDG1AAA Mark VI Power Distribution Module in stock

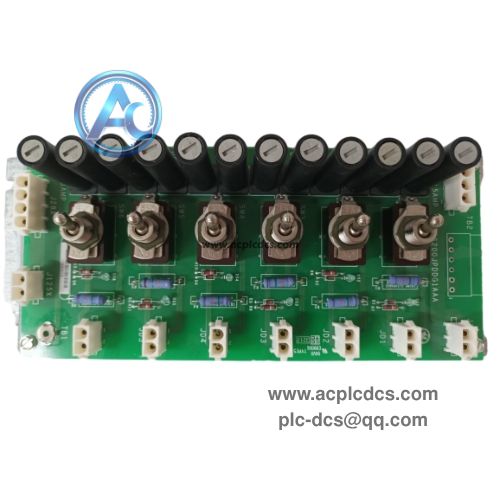

GE IS200JPDDG1AAA is a DC power distribution module designed for GE Speedtronic Mark VI turbine control system. It supplies isolated and protected DC control power to each I/O pack inside the turbine cabinet, distributing power to multiple field control branches with built-in overcurrent protection.
This PCB board supports daisy-chain connection via J1 and J1X connectors, and features status LED indicators for power diagnosis. It serves as replacement spare parts for gas and steam turbine control cabinets in power plants and oil & gas process industries.
Main Specifications
| Brand & Model | Brand: GE; Model: IS200JPDDG1AAA; Series: Mark VI Speedtronic Turbine Control |
| Type | DC Power Distribution Module (PDM) |
| Input Power | 125V DC, compatible with 120/240VAC power conversion system |
| Connectors | J1, J1X for daisy chain connection; 24 branch output terminals |
| Protection | Independent branch overcurrent protection, varistor surge suppression |
| Operating Temperature | -40℃ ~ +70℃, industrial cabinet grade |
Core Functions
| DC Power Distribution | Distribute main 125V DC power into multiple independent protected branches for I/O packs. |
| Overcurrent Protection | Each output channel has separate protection to avoid fault spreading across I/O modules. |
| Daisy Chain Expansion | Multiple boards can be linked together to expand power distribution capacity for large racks. |
| Surge Suppression | Built-in varistors absorb voltage surges and protect downstream I/O hardware. |
| Power Status Indication | Onboard LED lights show real-time power status for fast on-site troubleshooting. |
| Hazardous Area Suitability | Designed to meet Class 1 Division 2 and ATEX requirements for hazardous locations. |
Application Scenarios
| Mark VI Turbine Control Cabinet | Power distribution board for GE Mark VI Speedtronic turbine control racks. |
| Gas & Steam Turbine Systems | Supply protected DC power to turbine I/O packs and control modules. |
| Power Generation Plants | Combined cycle power plant turbine control cabinet power supply distribution. |
| Oil & Gas Facilities | Onshore and offshore turbine control systems in hazardous classified areas. |
| System Maintenance | Spare replacement for faulty power distribution boards during cabinet overhaul. |
| Turbine Retrofit Projects | Upgrade and reconstruction of existing Mark VI turbine control systems. |
FAQ
| Question | Answer |
| What is GE IS200JPDDG1AAA? | It is a DC power distribution module used for GE Mark VI Speedtronic turbine control cabinet. |
| What is its main function? | It distributes 125V DC power to each I/O pack and provides independent branch overcurrent protection. |
| Can multiple boards be connected together? | Yes, it supports daisy-chain connection via J1 and J1X connectors for power expansion. |
