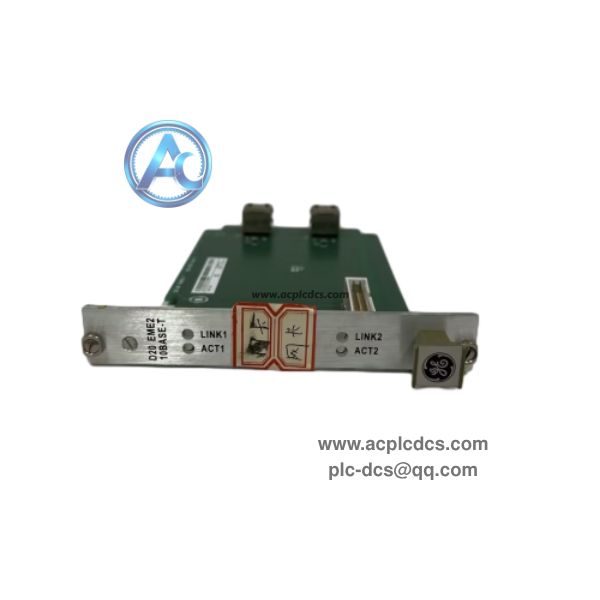

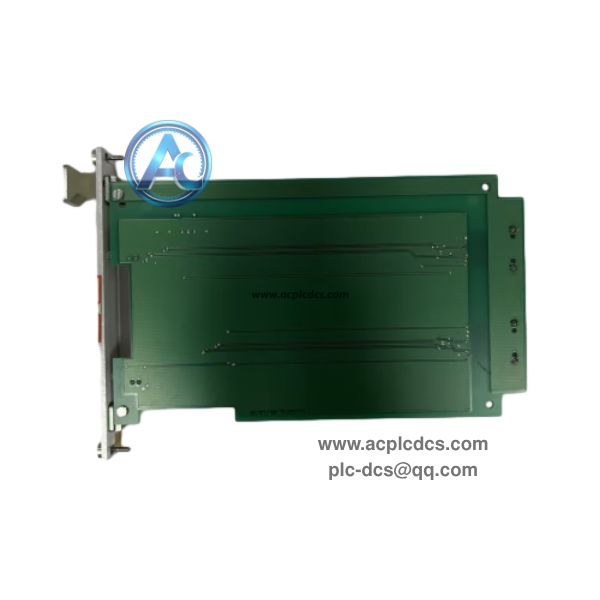

GE D20 EME210BASE-T Ethernet Communication Module in stock

GE D20 EME210BASE-T is an Ethernet communication module for GE D20 series RTU and substation automation controller. It provides 10BASE-T twisted pair Ethernet interface to realize network communication between D20 controller and upper SCADA system.

This plug-in network card supports standard industrial Ethernet protocols for power substation data collection and remote control. It is widely used for spare replacement and network transformation of power grid substation D20 automation racks..

Data Parameters

• 1. Brand: GE.

• 2. Model: D20 EME210BASE-T.

• 3. Product Type: 10BASE-T Ethernet Communication Module.

• 4. Application: GE D20 RTU / substation automation control system.

• 5. Feature: 10Mbps twisted pair Ethernet, RJ45 interface, industrial EMC protection.

• 6. Characteristic: D20 backplane bus connection, compatible with D20 main controller.

• 7. Communication: 10BASE-T Ethernet, support DNP3, Modbus TCP.

• 8. Package: Rack plug-in module with RJ45 port and status LED.

• 9. Mounting: D20 standard chassis rack installation.

• 10. Operating Temperature: -40℃ ~ +70℃.

Core Functions

• 1. Build Ethernet network channel between D20 RTU controller and remote SCADA host.

• 2. Upload substation telemetry, remote signal and fault event data via Ethernet.

• 3. Receive remote control commands from upper system and forward to D20 control logic.

• 4. Provide link status indication, communication fault diagnosis and alarm output.

• 5. Cooperate with other D20 modules to complete power grid remote monitoring and protection.

Application Scenarios

• 1. Power substation GE D20 RTU cabinet communication module replacement and maintenance.

• 2. Grid automation remote terminal unit network upgrading and reconstruction project.

• 3. Water plant and industrial power distribution room D20 control system spare backup.

• 4. Old D20 serial communication transformation to Ethernet networking renovation.

• 5. Railway power supply automation monitoring rack spare inventory.

FAQ

• 1. Q: What is GE D20 EME210BASE-T?
      A: It is a 10BASE-T Ethernet communication module dedicated for GE D20 RTU substation controller.

• 2. Q: What is the network rate?
      A: It is 10Mbps 10BASE-T Ethernet over twisted pair cable.

• 3. Q: Can it be hot swapped when the RTU is online?
      A: Cut off rack power before replacement to avoid interruption of substation remote communication.
