GE 531X305NTBAJG1 NTB/3TB Terminal Board in stock

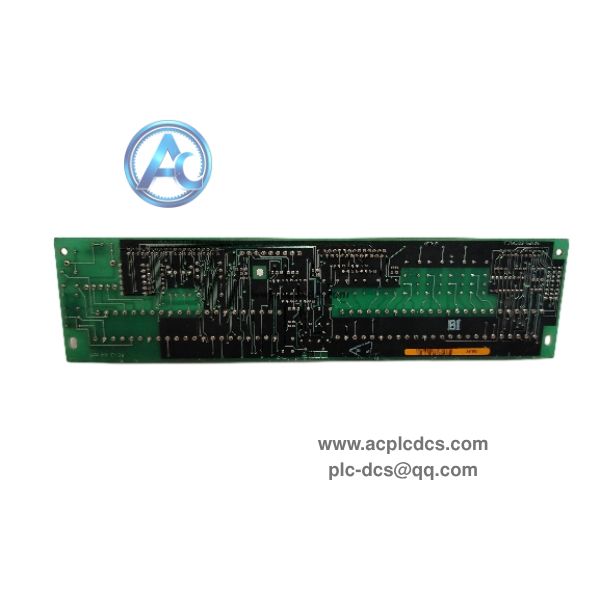

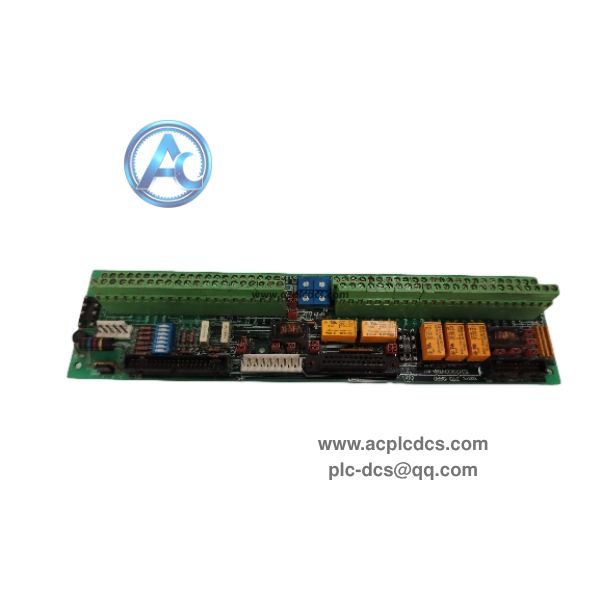

GE 531X305NTBAJG1 is an NTB/3TB terminal board for GE DC2000, EX2000 and Mark V excitation & drive control systems. It serves as the external signal interface hub for the drive cabinet, integrating analog I/O, relay outputs, encoder port and serial communication circuits.

This legacy board is discontinued. It is widely used as spare parts for power plant turbine excitation, large drive renovation and maintenance, with onboard potentiometers for analog signal scaling and jumper settings for encoder voltage selection.

Data Parameters

• 1. Brand: GE (General Electric / GE Vernova)

• 2. Model: 531X305NTBAJG1

• 3. Product Type: NTB/3TB Terminal Interface Board

• 4. Application: DC2000 / EX2000 / Mark V excitation and drive system

• 5. Feature: 7 relay outputs, encoder interface, low-level analog I/O

• 6. Characteristic: Regulated 5VDC /15VDC, unregulated 24VDC /120VAC output

• 7. Communication: RS232C, RS422 serial port

• 8. Compatible Devices: GE turbine excitation, large DC drive controller

• 9. Mounting: Installed inside drive or excitation cabinet rack

• 10. Operating Temperature: -20℃ ~ +70℃

Core Functions

• 1. Provide external wiring terminals for analog signals and relay interlock signals.

• 2. Connect differential encoder for speed and position feedback of the drive unit.

• 3. Supply local regulated and unregulated power for peripheral signal circuits.

• 4. Support serial communication for parameter debugging and fault diagnosis.

• 5. Adjust analog signal range via potentiometers and configure encoder voltage by jumpers.

Application Scenarios

• 1. Power plant steam turbine and gas turbine excitation control cabinet.

• 2. Large DC drive and rolling mill drive control system.

• 3. EX2000 synchronous generator excitation regulation unit.

• 4. Heavy industrial drive interlock, speed feedback and signal acquisition cabinet.

• 5. Old GE Mark V / DC2000 system spare replacement and overhaul.

FAQ

• 1. Q: What is GE 531X305NTBAJG1?
      A: It is NTB/3TB signal terminal board for GE DC2000/EX2000 excitation and drive system.

• 2. Q: Can it work separately without the main control board?
      A: No, it is only an interface terminal board and must be matched with the drive main control card.

• 3. Q: Is this model still in production?
      A: It has been discontinued, only available for aftermarket spare supply.
