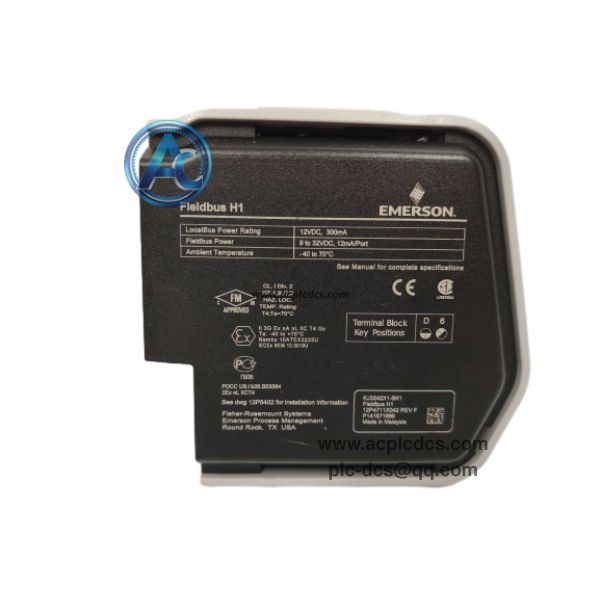

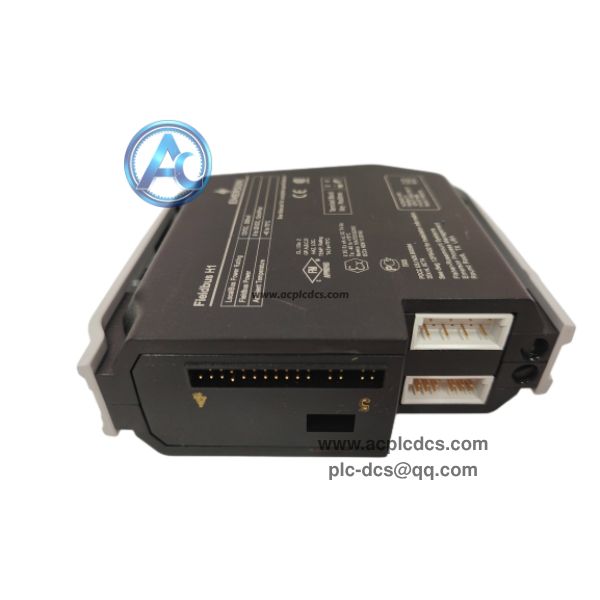

Emerson KJ3242X1-BK1 12P4711X042 DeltaV Fieldbus H1 Card in stock

Emerson KJ3242X1-BK1 12P4711X042 is a S-Series Fieldbus H1 communication card for DeltaV DCS system. It acts as a communication gateway connecting DeltaV controllers and FOUNDATION Fieldbus H1 smart field instruments.

This fieldbus interface module supports intrinsic safety and hazardous area certification, realizing digital signal transmission, instrument parameter configuration and online diagnosis. It is widely used for spare replacement and communication expansion in chemical, oil & gas and power plant DeltaV control systems.

Data Parameters

• 1. Brand: Emerson.

• 2. Model: KJ3242X1-BK1, 12P4711X042.

• 3. Product Type: S-Series FOUNDATION Fieldbus H1 Communication Card.

• 4. Application: DeltaV distributed control system.

• 5. Feature: FOUNDATION Fieldbus H1, hazardous area approval, IS compatible.

• 6. Characteristic: Digital bus communication, multi-device on one segment, instrument diagnosis.

• 7. Communication: FOUNDATION Fieldbus H1, DeltaV local bus.

• 8. Package: Complete S-series pluggable module with terminal connector.

• 9. Mounting: S-series I/O carrier rack installation.

• 10. Operating Temperature: -40℃ ~ +70℃.

Core Functions

• 1. Realize two-way data exchange between DeltaV controller and FOUNDATION Fieldbus H1 field devices.

• 2. Support reading process variables, bus voltage and instrument diagnostic information from field bus segments.

• 3. Download configuration parameters to smart transmitters, valve positioners and FF field instruments.

• 4. Monitor bus communication status and trigger alarm for bus short circuit, device offline and communication failure.

• 5. Meet explosion-proof standards for Zone 2 and Division 2 hazardous industrial environments.

Application Scenarios

• 1. Petrochemical plant DeltaV FF fieldbus control cabinet spare replacement and maintenance.

• 2. Oil and gas pipeline hazardous area digital instrument communication renovation project.

• 3. Power plant auxiliary control system FOUNDATION Fieldbus segment expansion upgrade.

• 4. Refinery and chemical process automation bus communication spare inventory backup.

• 5. Pharmaceutical and coal chemical hazardous location DCS system transformation.

FAQ

• 1. Q: What is Emerson KJ3242X1-BK1 12P4711X042?
      A: It is DeltaV S-series FOUNDATION Fieldbus H1 communication interface card for smart FF instruments.

• 2. Q: What protocol does it support?
      A: It follows FOUNDATION Fieldbus H1 protocol for digital field instrument networking.

• 3. Q: Can it be hot swapped?
      A: It supports hot swap under specified safety conditions for DeltaV S-series racks.
