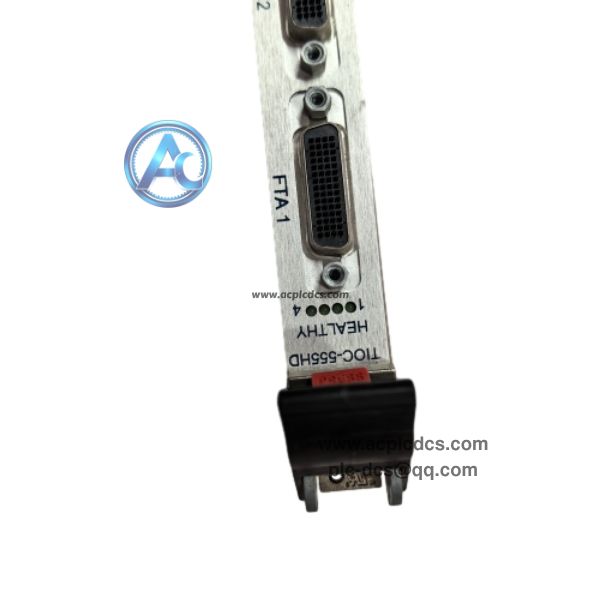

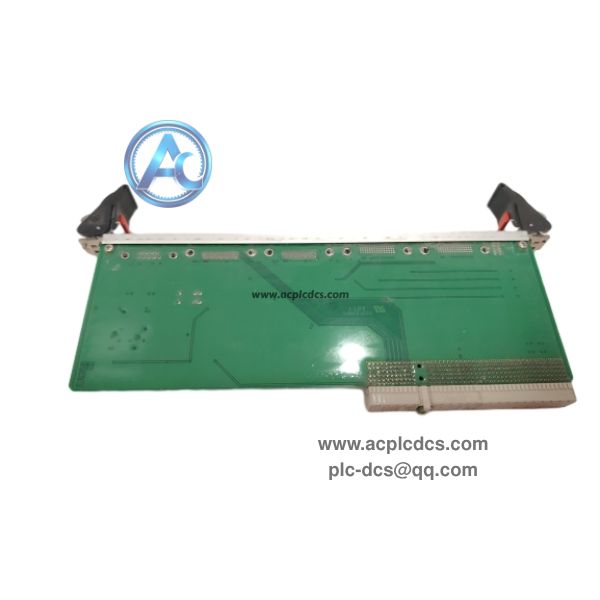

CCC TIOC-555HD Transition I/O Module in stock

CCC TIOC-555HD is a high-density transition I/O module for CCC IOC-555 compressor control platform. It serves as signal conditioning and interface board between field sensors, actuators and main processor, supporting analog and discrete signal acquisition and output for anti-surge control system.

This CPCI hot-swappable module features galvanic isolation and built-in self-diagnosis. It matches MCP-1004 and other CCC series CPU cards, widely used for signal routing in centrifugal compressor control cabinets in oil & gas and petrochemical plants.

Data Parameters

• 1. Brand: COMPRESSOR CONTROLS CORP (CCC)

• 2. Model: TIOC-555HD

• 3. Product Type: Transition I/O Interface Module

• 4. Form Factor: CPCI rack card, hot swap supported

• 5. Power Supply: 24VDC

• 6. Signal Type: Analog input/output, discrete DI/DO

• 7. Feature: Galvanic isolation, channel fault diagnosis

• 8. Matching System: CCC IOC-555 / XCALIBER 1000

• 9. Humidity: 5%~95% non-condensing

• 10. Operating Temperature: -40℃ ~ +70℃

Core Functions

• 1. Collect field pressure, flow, temperature and vibration signals for compressor control.

• 2. Condition and transmit signals to main processor for anti-surge calculation.

• 3. Output control signals to anti-surge valves and solenoid actuators.

• 4. Continuously monitor channel status and report open circuit / short circuit faults.

• 5. Realize electrical isolation between field side and control rack to reduce interference.

Application Scenarios

• 1. Natural gas pipeline centrifugal compressor anti-surge control cabinet.

• 2. Refinery and petrochemical process gas compressor control system.

• 3. LNG plant and gas booster station turbomachinery control.

• 4. Compressor performance control and safety interlock monitoring.

• 5. CCC IOC-555 system spare replacement and on-site overhaul.

FAQ

• 1. Q: What is CCC TIOC-555HD?
      A: It is transition I/O interface module for CCC IOC-555 compressor control system.

• 2. Q: Can it work separately?
      A: No, it needs to cooperate with MCP-1004 main processor card.

• 3. Q: Is this model still in production?
      A: Discontinued, only for aftermarket spare parts supply.
