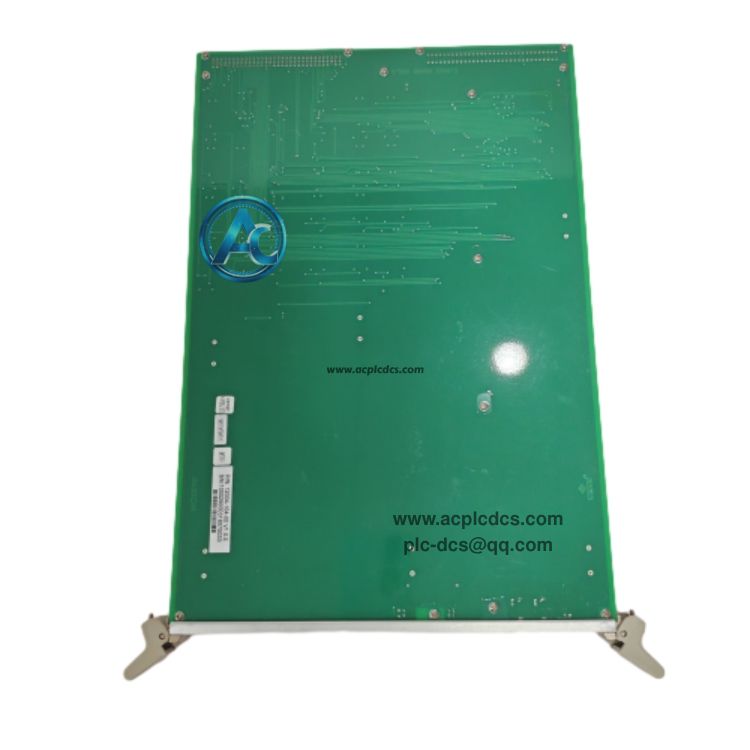

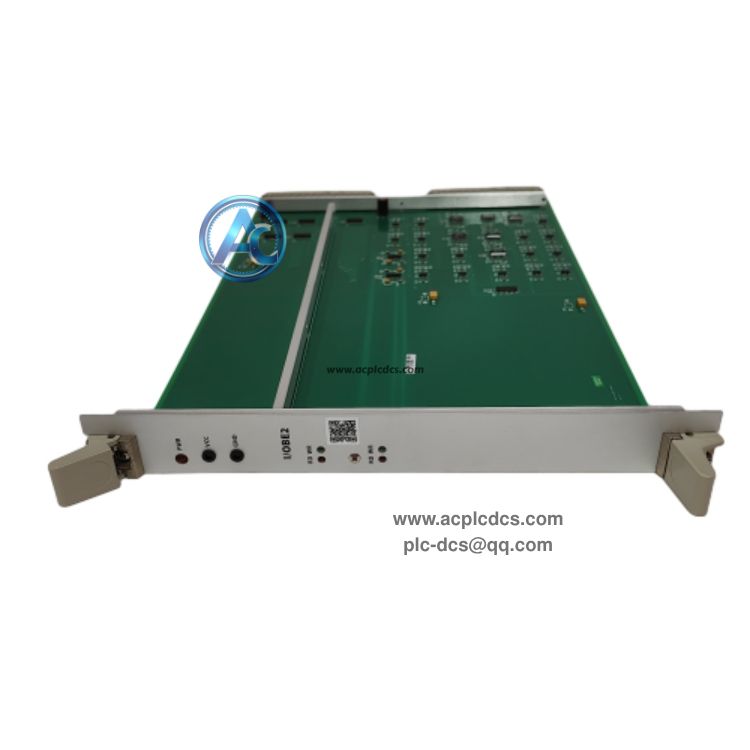

ALSTOM I/OBE2 12004-104-00 V1.0.0 I/O Bus Extension Interface Module in stock

ALSTOM I/OBE2 12004-104-00 V1.0.0 is a high reliability I/O bus extension interface module developed for ALSTOM Contronic and MicroREC control platforms. It acts as the signal hub between main controller and field I/O cards to realize data exchange and signal isolation in turbine control systems.

This board adopts industrial-grade components and proprietary backplane bus design, supporting continuous long-time operation under strong electromagnetic interference environment. It is widely used as spare replacement part for power plant turbine control cabinet maintenance and old system renovation projects.

Data Parameters

• 1. Brand: ALSTOM.

• 2. Model: I/OBE2, Part No:12004-104-00, Version:V1.0.0.

• 3. Product Type: I/O Bus Extension Interface Module.

• 4. Applicable System: ALSTOM Contronic / MicroREC control system.

• 5. Logic Power Supply: 24V DC.

• 6. Communication: Proprietary parallel backplane bus.

• 7. Isolation: Built-in photoelectric isolation for anti-interference.

• 8. Mounting: Rack plug-in installation.

• 9. Operating Temperature: -10℃ ~ +60℃.

• 10. Hardware Revision: V1.0.0.

Core Functions

• 1. Serve as I/O bus gateway to transmit real-time signals between main control unit and field I/O modules.

• 2. Realize electrical isolation between control side and field side to suppress surge and electromagnetic interference.

• 3. Complete signal routing and data buffering to guarantee stable and high-speed bus data transmission.

• 4. Support hot swap function for convenient on-site replacement and maintenance of faulty board.

• 5. Built-in hardware diagnosis circuit to monitor bus communication status and report fault alarm.

Application Scenarios

• 1. Power plant steam turbine control system rack and protection cabinet spare replacement.

• 2. ALSTOM Contronic distributed control system upgrade and retrofit project.

• 3. Heavy industry metallurgy high reliability process control cabinet I/O bus expansion.

• 4. Oil & gas safety interlock control system with high EMC requirements.

• 5. Legacy ALSTOM MicroREC automation system spare parts inventory and maintenance.

FAQ

• 1. Q: What is ALSTOM I/OBE2 12004-104-00 V1.0.0?
      A: It is an I/O bus extension interface module for ALSTOM Contronic / MicroREC turbine control system, used for bus signal transmission and isolation.

• 2. Q: What is the version V1.0.0 stands for?
      A: V1.0.0 represents the hardware and firmware revision of this I/OBE2 board, which must be consistent with the original rack version during replacement.

• 3. Q: What power supply does this module adopt?
      A: It uses 24V DC logic power supply and is equipped with photoelectric isolation to improve anti-interference performance.
