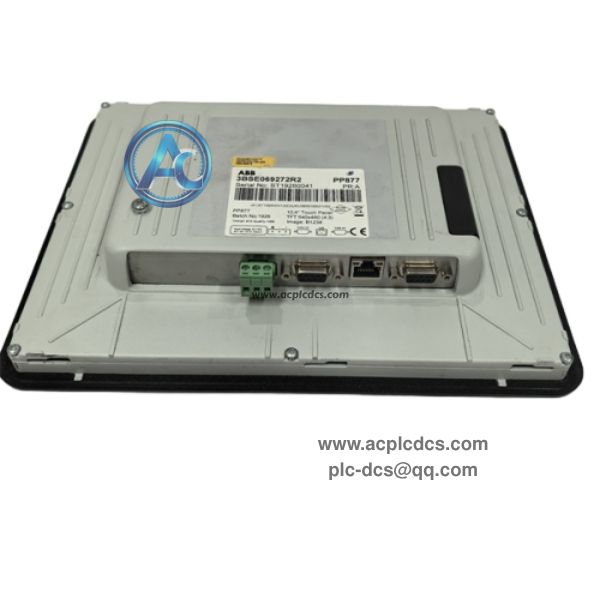

ABB PP877 3BSE069272R2 Panel 800 HMI Touch Panel in stock

ABB PP877 3BSE069272R2 is a 10.4-inch Panel 800 Version 6 operator touch panel, designed for ABB 800xA and Compact Product Suite control systems. It supports process data display, parameter setting, alarm monitoring and manual operation for on-site automation equipment.

This resistive touch HMI is equipped with Ethernet, serial communication ports, SD card and USB interfaces. It is widely used for spare replacement and cabinet retrofit of old ABB DCS control systems in power, chemical and pulp & paper industries.

Data Parameters

• 1. Brand: ABB.

• 2. Model: PP877, 3BSE069272R2.

• 3. Product Type: Panel 800 Operator HMI Touch Panel.

• 4. Application: 800xA / Compact Product Suite DCS operation monitoring.

• 5. Feature: 10.4 inch TFT LCD, resistive touch screen, LED backlight.

• 6. Characteristic: Resolution 640×480, 450 cd/m² brightness, 50000hrs backlight life.

• 7. Communication: Ethernet, RS232 / RS422 / RS485 serial ports.

• 8. Package: Complete front panel with touchscreen and rear terminal module.

• 9. Mounting: Panel cut-out installation in control cabinet.

• 10. Operating Temperature: 0℃ ~ +55℃.

Core Functions

• 1. Real-time display of process values, trend curves and equipment running status from DCS system.

• 2. On-site parameter modification, remote control and manual/auto switching operation.

• 3. Collect and pop up fault alarms, store alarm records for query and export.

• 4. Support SD card and USB for project program backup, restore and firmware upgrade.

• 5. Communicate with ABB AC800M controllers via Ethernet and serial buses.

Application Scenarios

• 1. Power plant ABB 800xA DCS operation cabinet HMI spare replacement.

• 2. Petrochemical plant workshop control panel monitoring and operation renovation.

• 3. Pulp and paper mill production line Compact Product Suite system upgrade.

• 4. Water treatment and metallurgy automation control cabinet HMI inventory backup.

• 5. Old Panel800 series touch screen renewal and migration project.

FAQ

• 1. Q: What is ABB PP877 3BSE069272R2?
      A: It is a 10.4-inch Panel800 V6 HMI touch panel for ABB 800xA DCS control system.

• 2. Q: What software is used for configuration?
      A: It is configured by Panel Builder 800 programming software.

• 3. Q: Can it be hot swapped during operation?
      A: Cut off 24VDC power supply before disassembly to avoid communication interruption.
