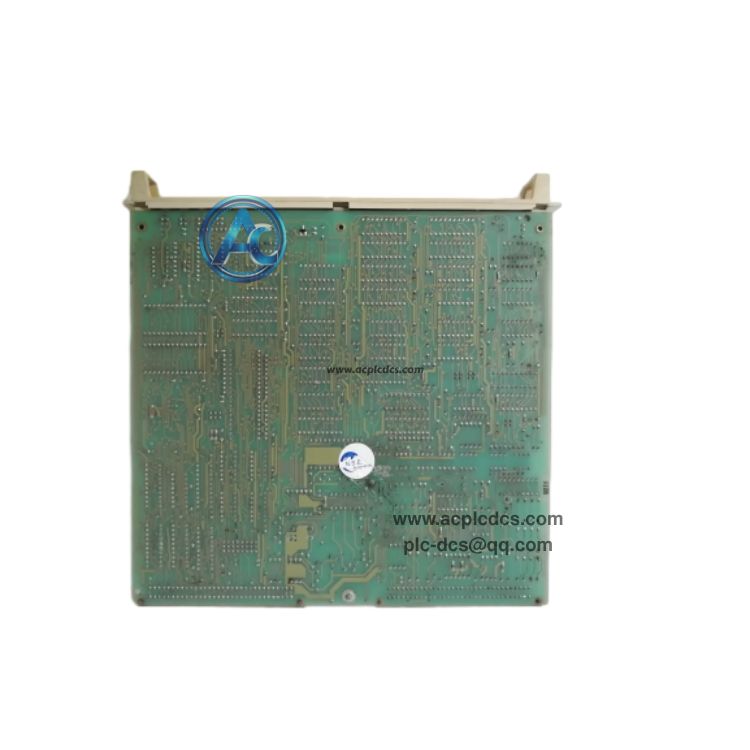

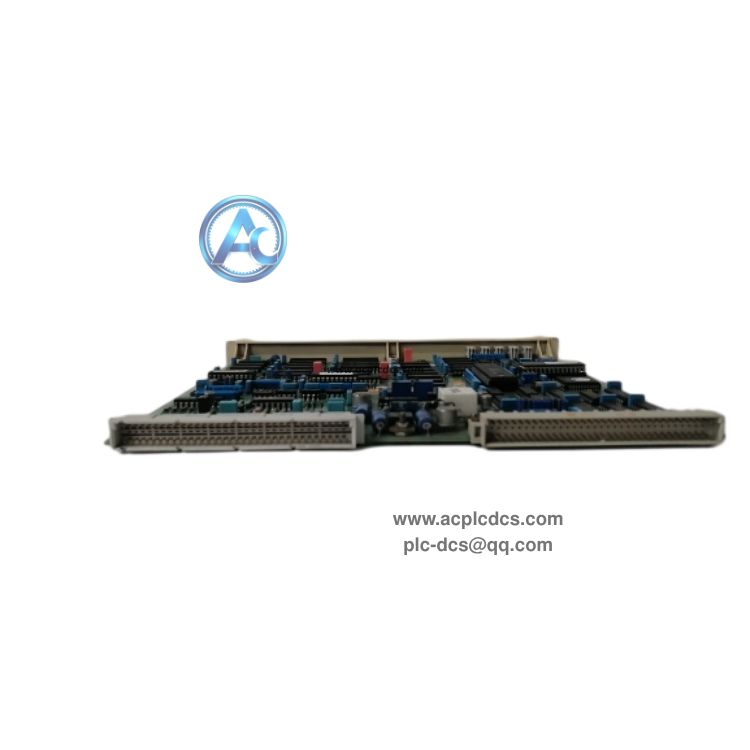

ABB DSDP140B 57160001-ACX Counter Board in stock

ABB DSDP140B 57160001-ACX is a counter board for ABB Advant Master DCS control system. It is designed for high-speed pulse signal counting, position measurement and frequency acquisition from field encoders and pulse transmitters.

This rack plug-in counting board provides high precision pulse processing capability. It is widely used as spare parts for old Advant Master system maintenance, cabinet transformation and on-site emergency replacement.

Data Parameters

• 1. Brand: ABB.

• 2. Model: DSDP140B.

• 3. Part No: 57160001-ACX.

• 4. Product Type: Counter Board.

• 5. Compatible System: ABB Advant Master DCS.

• 6. Function Position: High speed pulse counting interface board.

• 7. Main Function: Pulse counting and position signal acquisition.

• 8. Mounting Style: Rack plug-in board for DCS cabinet.

• 9. Signal Type: Encoder and pulse input signal.

• 10. Application: Industrial distributed control system.

Core Functions

• 1. Receive high-speed pulse signals from field encoders and pulse sensors.

• 2. Complete high-precision pulse counting, speed and position value calculation.

• 3. Transmit processed measurement data to Advant Master DCS controller.

• 4. Detect abnormal pulse input and send alarm information to the control system.

• 5. Support continuous pulse sampling for motion and flow measurement scenarios.

Application Scenarios

• 1. Power plant ABB Advant Master DCS system maintenance and spare parts replacement.

• 2. Petrochemical plant flow metering and rotary equipment speed monitoring.

• 3. Pulp and paper factory old Advant control cabinet retrofit project.

• 4. Metallurgical production line speed and position tracking control system.

• 5. On-site emergency spare parts for legacy ABB Advant control system.

FAQ

• 1. Q: What is ABB DSDP140B 57160001-ACX used for?
      A: It is a counter board for ABB Advant Master DCS, used to collect high-speed pulse signals and realize counting and position measurement.

• 2. Q: Which control system is DSDP140B compatible with?
      A: It is dedicated for ABB Advant Master distributed control system as pulse counting module.

• 3. Q: What is the main advantage of DSDP140B counter board?
      A: It supports high-speed pulse input and high-precision counting, suitable for speed and position monitoring of rotating machinery.
