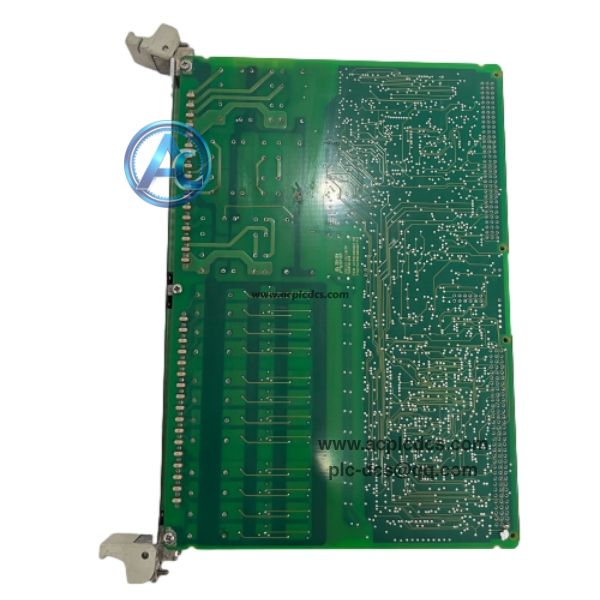

ABB 500BIO01 1MRB150005R1/J BI/O Bus Interface Board in stock

ABB 500BIO01 1MRB150005R1/J is a BI/O bus interface board designed for ABB AC800M control system. It acts as the communication gateway between the main controller and distributed remote BI/O I/O modules, enabling high-speed bidirectional data transmission over dedicated BI/O bus.

This board adopts redundant bus link design with built-in bus diagnostic and fault locating capability. It supports rack mounting and seamless integration with AC800M hardware, widely used in power, metallurgy and water treatment control cabinet maintenance, spare replacement and distributed I/O network renovation projects.

Data Parameters

• 1. Brand: ABB.

• 2. Model: 500BIO01, Part Number:1MRB150005R1/J.

• 3. Product Type: BI/O Bus Interface Board.

• 4. Product Series: AC800M Controller System.

• 5. Bus Protocol: ABB dedicated BI/O bus.

• 6. Communication: Redundant dual bus links.

• 7. Function: Connect main controller and remote BI/O modules.

• 8. Diagnosis: Bus link monitoring and fault location.

• 9. Mounting: Standard control rack installation.

• 10. Operating Temperature: 0℃ ~ +60℃.

Core Functions

• 1. Establish BI/O bus connection between AC800M main controller and distributed remote I/O units.

• 2. Transmit field I/O acquisition data from remote BI/O modules to the main controller in real time.

• 3. Forward control commands from the controller to remote I/O modules for field actuator control.

• 4. Redundant bus design guarantees continuous communication even when one communication channel fails.

• 5. Diagnose bus quality and board status, upload fault alarms to the host control system promptly.

Application Scenarios

• 1. Power plant AC800M distributed I/O network cabinet spare replacement.

• 2. Metallurgical industry remote signal collection control system upgrade project.

• 3. Water treatment large-scale distributed automation control spare renewal.

• 4. Process industry AC800M control system spare inventory backup.

• 5. Legacy ABB AC800M system aging BI/O interface board replacement project.

FAQ

• 1. Q: What is ABB 500BIO01 1MRB150005R1/J?
      A: It is ABB AC800M BI/O bus interface board, used for communication between main controller and remote BI/O I/O modules.

• 2. Q: What is the advantage of redundant bus?
      A: Single link fault will not interrupt data transmission, improving the reliability of distributed control network.

• 3. Q: Can it be hot swapped?
      A: Follow AC800M maintenance manual, isolate bus communication before module replacement.
