ABB 3BHE023784R2530 PPD113B01-25-111000 AC800PEC Controller Module in stock

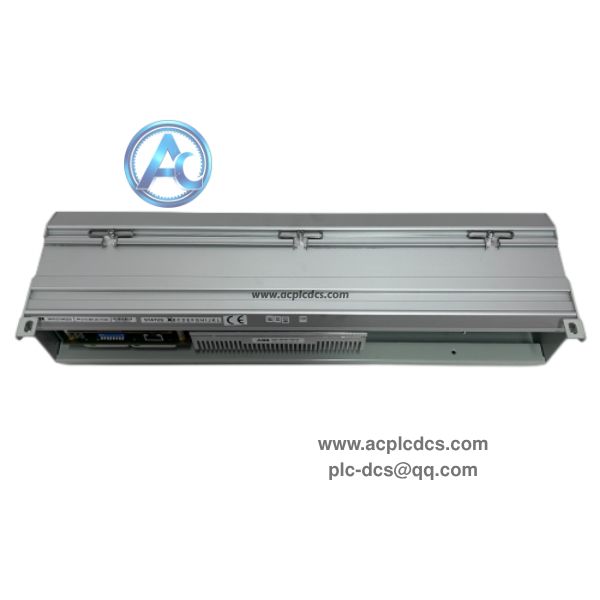

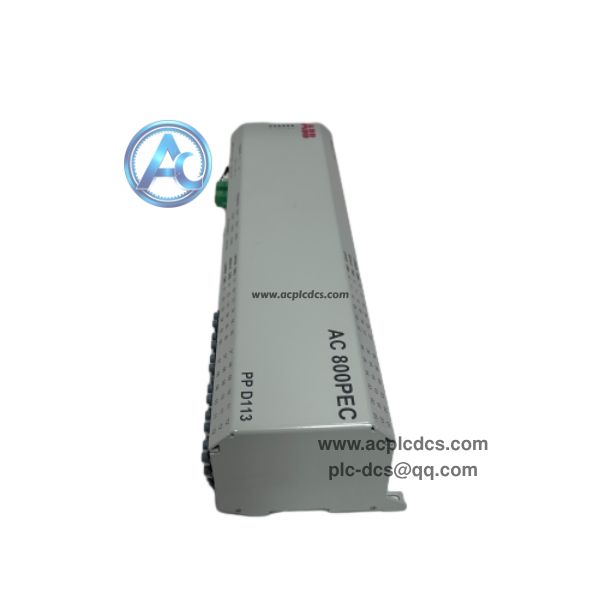

ABB 3BHE023784R2530 PPD113B01-25-111000 is a high-speed processor module for ABB AC800PEC power control platform, widely used in Unitrol 6000 generator excitation system. It adopts high-performance RISC processor to realize fast closed-loop control and power protection for synchronous generators.

This module supports ANYIO expansion slots and optical communication interfaces, compatible with UFD128 optical modules. It is an old spare part and mainly used for maintenance and replacement of power plant excitation cabinets.

Data Parameters

• 1. Brand: ABB

• 2. Model: 3BHE023784R2530 / PPD113B01-25-111000

• 3. Product Type: AC800PEC High-speed Processor Module

• 4. Application: Unitrol 6000 excitation, SVG, rectifier power control

• 5. Feature: ANYIO expansion, optical fiber communication, multi-protocol support

• 6. Characteristic: High-speed sampling, built-in fault diagnosis, redundant communication

• 7. Communication: CEX2 bus, RS422, Modbus RTU, optical link

• 8. Compatible Devices: UFD128 optical module, AC800PEC rack, I/O boards

• 9. Mounting: Installed in AC800PEC standard rack slot

• 10. Operating Temperature: -20℃ ~ +60℃

Core Functions

• 1. Execute high-speed excitation closed-loop regulation and reactive power control logic.

• 2. Realize high-speed signal interaction via optical fiber with UFD128 I/O modules.

• 3. Run generator protection algorithm and trigger fast protection under fault conditions.

• 4. Communicate with DCS, HMI and protection devices through multiple buses.

• 5. Record fault waveforms, upload alarm information and support online diagnosis.

Application Scenarios

• 1. Thermal power and hydropower Unitrol 6000 generator excitation cabinet.

• 2. Static var generator SVG and active power filter APF control unit.

• 3. Energy storage converter and medium voltage rectifier power control system.

• 4. Industrial high-power power electronic closed-loop control equipment.

• 5. ABB AC800PEC old system spare replacement and overhaul.

FAQ

• 1. Q: What is ABB 3BHE023784R2530?
      A: It is PPD113 series high-speed processor module for AC800PEC / Unitrol6000.

• 2. Q: Which optical module matches it?
      A: It is compatible with UFD128 optical I/O modules for fiber signal transmission.

• 3. Q: Is this model still in production?
      A: Discontinued, only supplied for after-sales maintenance and spare replacement.

Similar products

• • PPD539A102 3BHE039770R0102

• • XUD194 3BHE018137R0001

• • UAD149A0001 3BHE014135R0001

• • 3BHE015519R0001

• • UNITROL1020 UNS0119A-Z,V1 3BHE030579R0001
