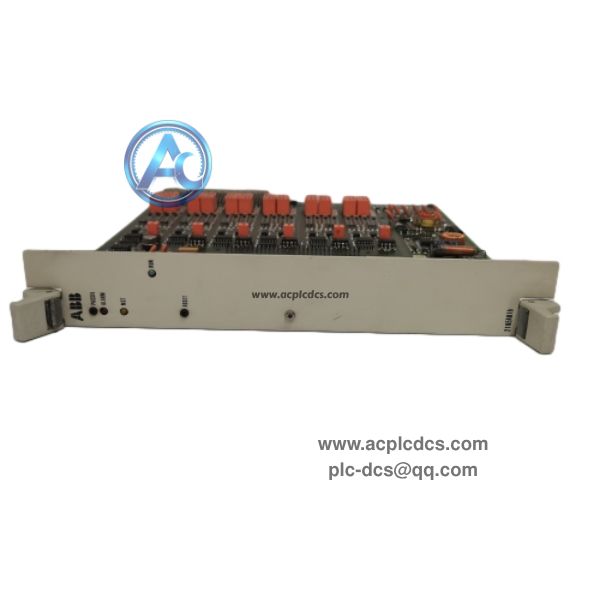

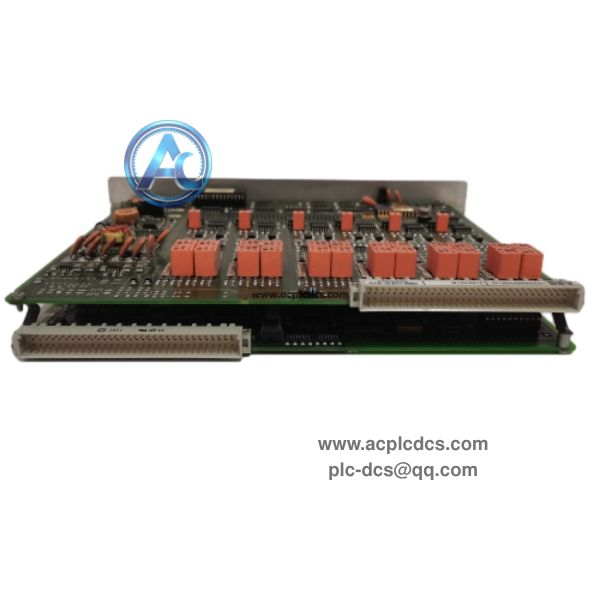

ABB 216EA61B HESG448230R1/G Analog I/O Board in stock

ABB 216EA61B HESG448230R1/G is a mixed analog input and output I/O board for ABB Symphony / INFI90 DCS system. It collects analog signals from field transmitters and outputs analog control signals to regulators and valves, acting as signal interface between controllers and field process equipment.

This board supports multi-channel configuration with built-in channel isolation and comprehensive diagnostic capability. It is rack-mounted and communicates via Symphony backplane bus, widely used in power plant DCS cabinet maintenance, spare replacement and industrial process control retrofit projects.

Data Parameters

• 1. Brand: ABB (Bailey).

• 2. Model: 216EA61B, Part Number:HESG448230R1/G.

• 3. Product Type: Mixed Analog Input / Output Board.

• 4. Product Series: Symphony / INFI90 DCS System.

• 5. Signal Type: 4-20mA analog input and 4-20mA analog output.

• 6. Bus: Symphony rack backplane bus communication.

• 7. Isolation: Channel isolation design for anti-interference.

• 8. Diagnosis: Open/short circuit and hardware fault detection.

• 9. Mounting: Standard DCS rack installation.

• 10. Operating Temperature: 0℃ ~ +60℃.

Core Functions

• 1. Receive 4-20mA analog signals from pressure, temperature and flow field transmitters.

• 2. Convert digital control commands from DCS controller into 4-20mA analog output for control valves.

• 3. Realize closed-loop process regulation by combining analog acquisition and analog output on one single board.

• 4. Continuous channel diagnostics detect broken wires, short circuits and internal board failures.

• 5. Communicate with Symphony controller through backplane bus for process data exchange.

Application Scenarios

• 1. Thermal power plant Symphony DCS mixed analog I/O cabinet spare replacement.

• 2. Petrochemical plant distributed control closed-loop regulation upgrade project.

• 3. Pulp & paper industry continuous process control cabinet spare renewal.

• 4. Large process plant DCS spare inventory backup.

• 5. Legacy ABB Symphony / INFI90 DCS aging mixed I/O board replacement project.

FAQ

• 1. Q: What is ABB 216EA61B HESG448230R1/G?
      A: It is ABB Symphony DCS mixed analog I/O board, supports both 4-20mA analog input and analog output.

• 2. Q: What is the advantage of mixed I/O board?
      A: It integrates AI and AO on one board, saves rack space for simple closed-loop control loops.

• 3. Q: Can it be hot swapped?
      A: Hot swap is supported under Symphony DCS, follow site maintenance operating procedure strictly.
