ABB 216AB61 HESG324013R101 Analog Input Board in stock

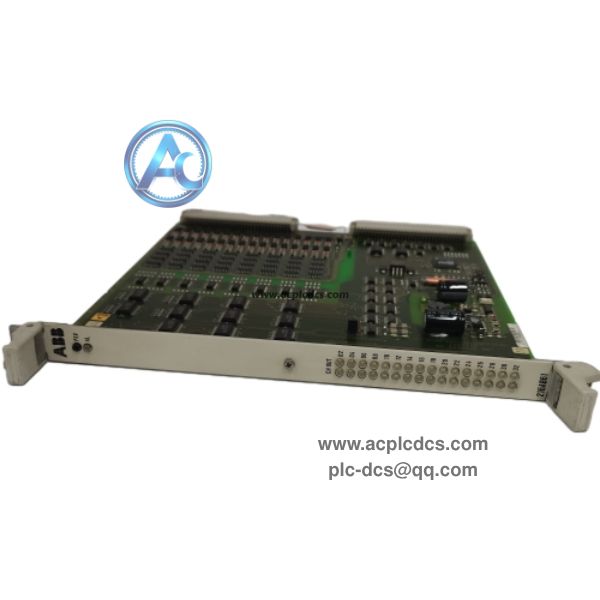

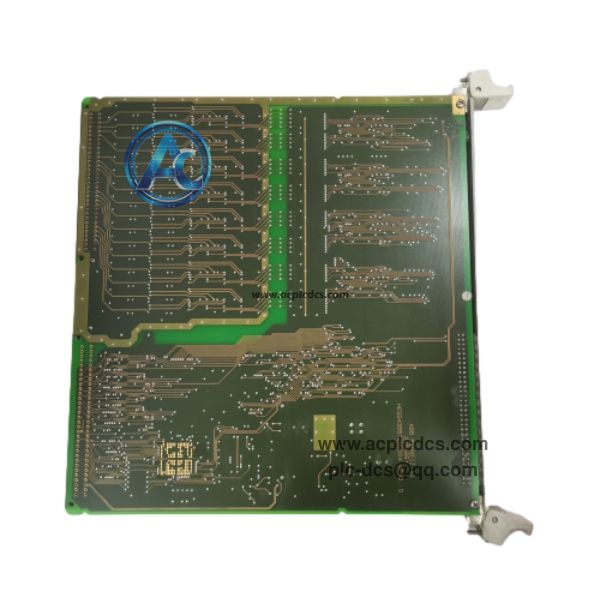

ABB 216AB61 HESG324013R101 is an analog input board used in ABB Bailey INFI 90 DCS system. It receives analog process signals from field transmitters, converts them into digital data and sends to the controller for monitoring and closed-loop control of industrial process variables.

This board provides multi-channel signal acquisition with built-in signal conditioning and fault diagnostic functions. It is installed in the INFI90 rack, widely used for power plant DCS cabinet maintenance, spare parts replacement and process control system retrofit projects.

Data Parameters

• 1. Brand: ABB (Bailey).

• 2. Model: 216AB61, Part Number:HESG324013R101.

• 3. Product Type: Analog Input Board.

• 4. Product Series: INFI 90 DCS System.

• 5. Input Signal: 4-20mA / 0-10V analog signals.

• 6. Function: Field analog signal sampling and A/D conversion.

• 7. Bus: INFI90 control bus communication.

• 8. Diagnosis: Channel open/short circuit and hardware fault detection.

• 9. Mounting: Rack mounted.

• 10. Operating Temperature: 0℃ ~ +60℃.

Core Functions

• 1. Collect 4-20mA or voltage analog signals from pressure, temperature and flow transmitters.

• 2. Complete signal conditioning and analog-to-digital conversion for process variable measurement.

• 3. Transmit converted digital data to INFI90 controller via backplane bus for process control.

• 4. Continuously diagnose each input channel to detect wire break, short circuit and board faults.

• 5. Support seamless integration into INFI90 rack for distributed control system configuration.

Application Scenarios

• 1. Thermal power plant INFI90 DCS analog signal acquisition cabinet spare replacement.

• 2. Petrochemical plant distributed control system process monitoring upgrade project.

• 3. Metallurgy industry continuous production process control cabinet spare renewal.

• 4. Large industrial process plant DCS spare inventory backup.

• 5. Legacy ABB Bailey INFI90 DCS system aging analog input board replacement project.

FAQ

• 1. Q: What is ABB 216AB61 HESG324013R101?
      A: It is ABB Bailey INFI90 DCS analog input board for collecting 4-20mA and voltage field process signals.

• 2. Q: Which system does it belong to?
      A: It belongs to the classic ABB Bailey INFI90 distributed control system.

• 3. Q: Can it be hot swapped?
      A: Hot swap is supported under INFI90 system design, follow site operation specifications.
